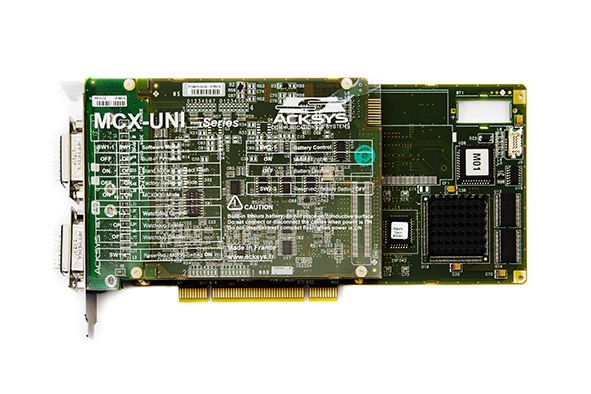

PCI, PCI-X, CPCI 6U industrial multiport board
NOTE : 570 range has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.
Designed for test applications or to be incorporated into a final equipment, our MCXUNI/570 boards (also available in Compact PCI) increase your system performance by discharging your computer from the asynchronous, asynchronous synchronized (isochronous) and synchronous (HDLC envelope frames, HDLC ABM/LAPB, HDLC NRM/SDLC, HDLC asynchronous, BSC, MONOSYNC, BISYNC or any type of protocol developed on request…) serial links.
The provided standard driver allows you to use the serial ports of the board from the standard API of the OS (ex. COM port interface on Windows), giving it “implementation simplicity and flexibility of use”. Protocols management deported in the board is transparent to the user.
Built to last, MCXUNI/570 boards are designed to be used in the most critical environments:
|
Number of channels |
2 or 4
|
||
|
Baud rate |
Asynchronous : up to 521 KBds Synchronous : up to 4 MBds (contact us for higher baud rates)
|
||
|
Format |
Universal PCI (32 bits 33MHz 3.3V/5V Ver 2.3, 2.2, 2.1) Compact PCI 6U board
|
||
|
Protocols |
Asynchronous, isochronous, HDLC/SDLC, BSC NRZ, NRZI, FM0, FM1, Manchester coding Transmit and receive clocks: internal, external, encoded in the data Protocols managed in the board firmware
Adaptation of existing protocols or development of specific protocols from a specification possible
|
||
|
Line interface |
V35, RS232, RS422, RS485, V24, V36, X21, RS449, EIA530 Soft configurable channel by channel
|
||
|
Available signals |
V35 : A, B, C, D, E, F, H, J, P & S, R & T, U & W, V & X, Y & AA Others (depending on interface) : TxD, RxD, TxCin, TxCout, RxC, RTS, CTS, DSR, DTR, DCD, RI, Gnd, PGnd
|
||
|
Connectors |

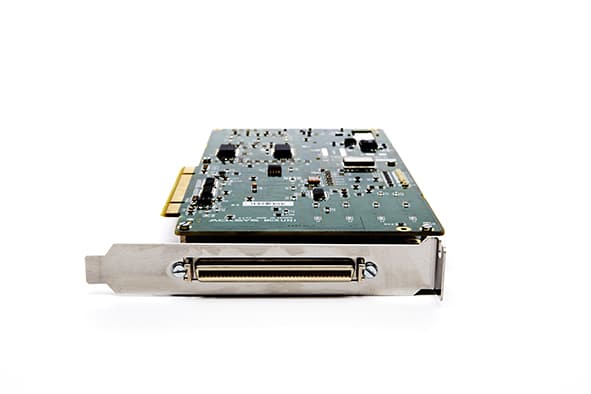

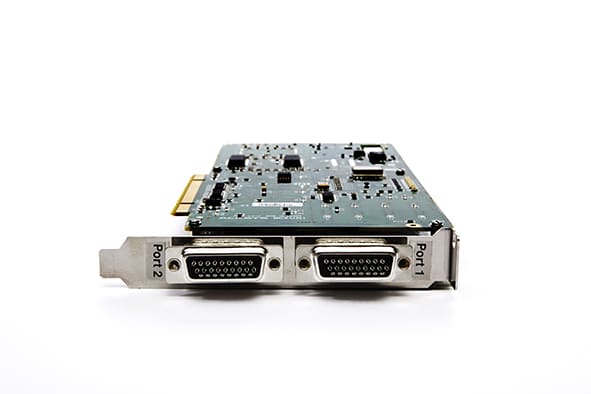

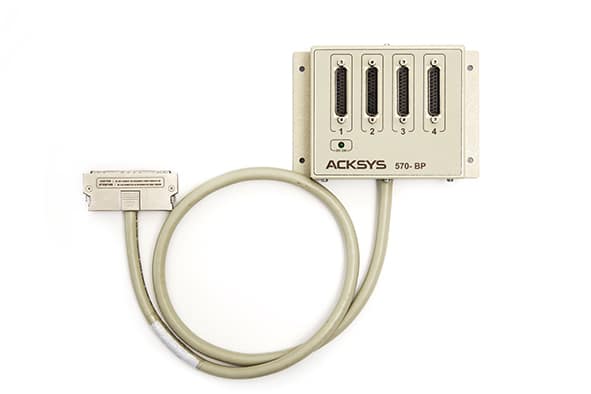

PCI Model – 2 channels : 2 SUB D26 – 4 channels : 4 SUB D25 (external case)

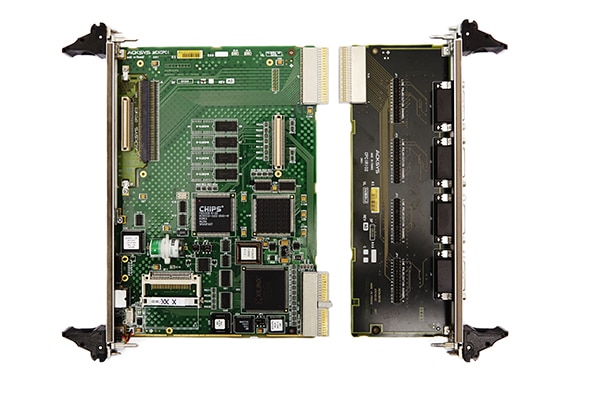

CPCI 6U model, front I/O – 2 channels : 2 SUB D26 – 4 channels : 4 SUB D25 (external case)
CPCI 6U model, rear I/O – 2 channels : 2 SUB D25 – 4 channels : 4 SUB D25 (without case)
|
||
|
Peripheral drivers |
Windows, Linux
|
||
|
Dimensions |
215 mm (L) x 115 mm (H)
|
||
|
Operating conditions |
Temperature from -5°C to +65°C, storage -25°C to +80°C, relative humidity from 0 to 95% RH without condensation
|
NOTE : 570 range has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.
|
PCI models |
|||
|
MCXUNI/570-2 |
2 synchronous/asynchronous channels, high performance, multiprotocols (bus PCI 3.3 & 5VDC) |
||
|
MCXUNI/570-4 |
4 synchronous/asynchronous channels, high performance, multiprotocols (bus PCI 3.3 & 5VDC) |
||
|
Compact PCI models |
|||
|
MCXCPCI/570-2 |
2 synchronous/asynchronous channels, high performance, multiprotocols |
||
|
MCXCPCI/570-2-R |
2 synchronous/asynchronous channels, high performance, multiprotocols, Rear I/O module |
||
|
MCXCPCI/570-4 |
4 synchronous/asynchronous channels, high performance, multiprotocols |
||
|
MCXCPCI/570-4-R |
4 synchronous/asynchronous channels, high performance, multiprotocols, Rear I/O module
|
