Industrial cellular router (2G/3G/4G) + WiFi (802.11n)

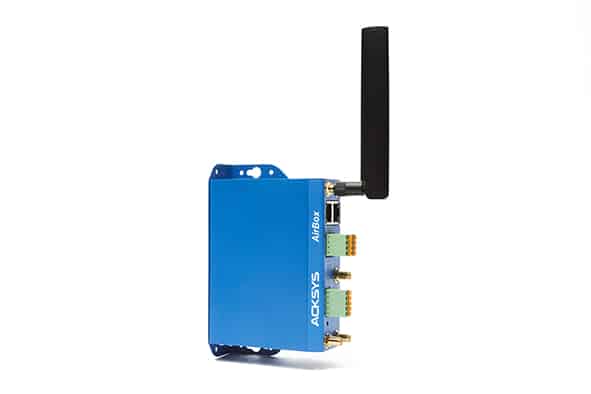

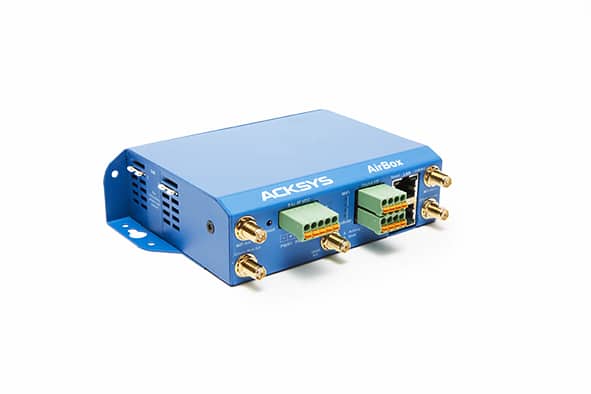

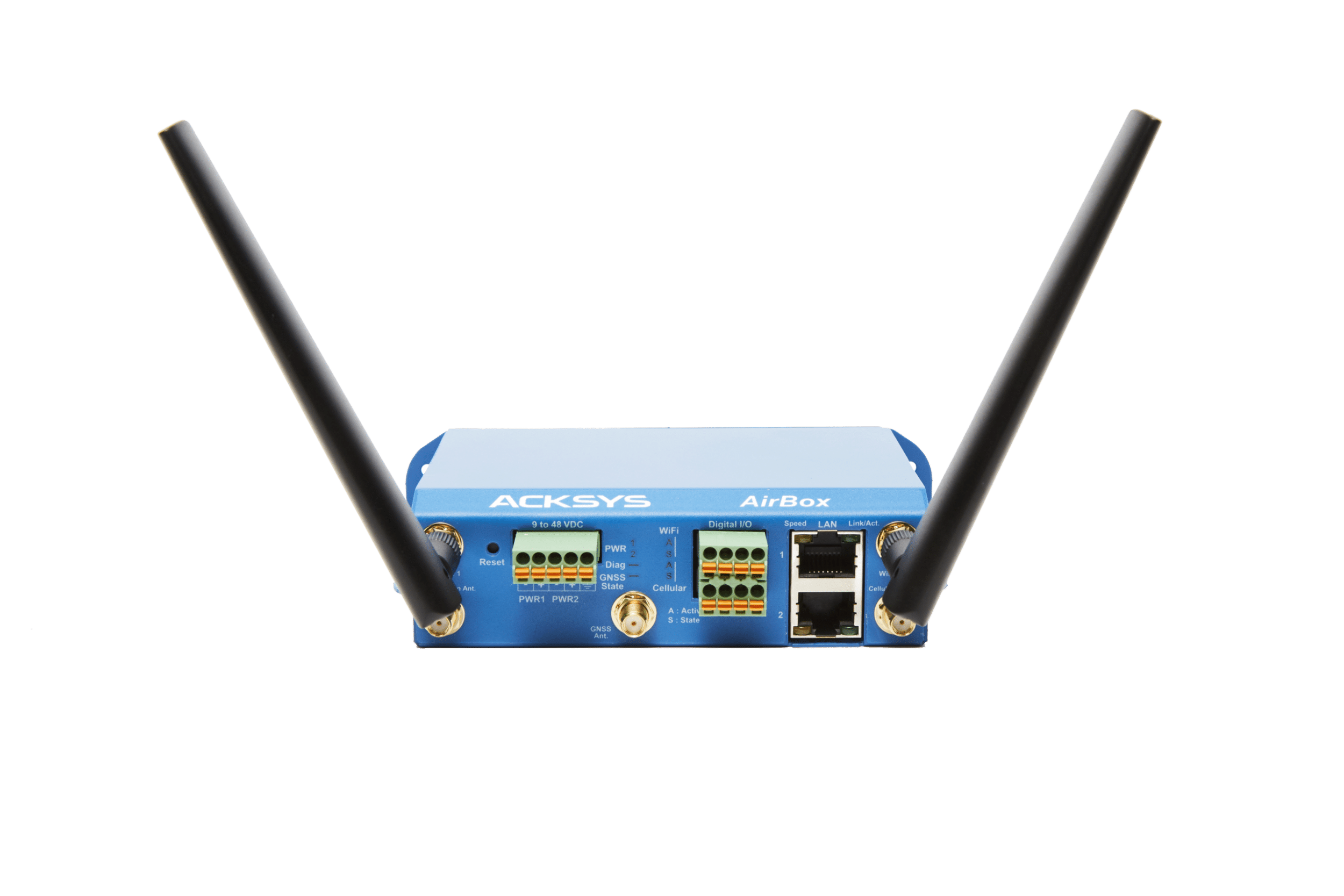

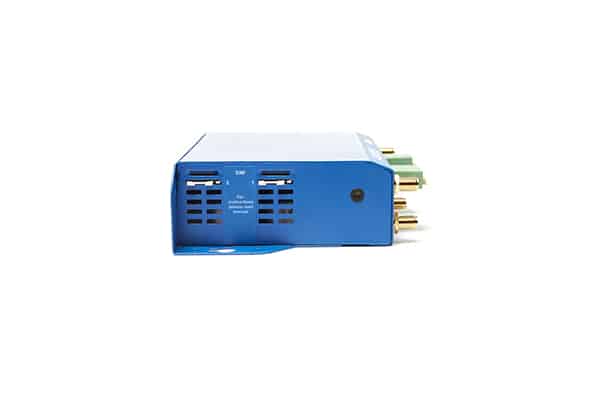

AirBox LTE is a cellular router (2G/3G/4G LTE) equipped with a dual-band WiFi interface (2.4 / 5 GHz), a GNSS interface (GPS, Galileo, GLONASS, Beidou), 2 Gigabit Ethernet ports and 2 isolated inputs/2 isolated outputs. It is designed for industrial applications (industry 4.0) and mobility (buses, vehicles …).
M2M and IIoT : AirBox LTE has WiFi and cellular wireless interfaces to ensure maximum flexibility for industrial applications. It allows a remote access to all your devices (maintenance, control for non-critical applications, remote I/O…). Its WiFi interface, configured in access point mode, also offers local access to the network from a tablet or a smartphone. It supports all kind of Ethernet flows (video, Modbus TCP, EtherNet/IP, Profinet…) and its 4 GPIOs make it possible to remotely control equipment or to read the logic state of an input signal. AirBox LTE ensures the integrity of data and network thanks to its onboard services (VPN, Firewall, WPA-ENTERPRISE…).
Mobility : AirBox LTE is equipped with high-speed wireless technologies for transmitting data to and from vehicles. For bus applications, AirBox LTE makes it possible to pool all data streams (SAE, ticketing, PIS, CCTV…) on a single router. Its WiFi roaming capabilities (<30 ms) ensure continuous data transmission as buses move to the depot. Its automatic switching capabilities between WiFi and 4G ensure service continuity when they go into operation. AirBox LTE allows vehicles tracking with its GNSS feature. It is also rugged (shock and vibration proof), E-marked ECE R10 and maintenance-free.
High availability : its multiple redundant interfaces (2 Ethernet ports, 2 power inputs, 2 SIM cards) and its integrated watchdog guarantee a perfect continuity of operation.
Administration and product monitoring : can be achieved directly from a web browser or from WaveManager, the centralized administration software provided by ACKSYS. Besides, its advanced routing and filtering functions make it easy to deploy large fleets of vehicles.
This product is also available in dual WiFi interface (11n + 11ac) industrial access point version, click here to access AirBox.
| Ethernet interface | 2-port Gigabit Ethernet 10/100/1000 auto-sensing, Base TX, auto MDI/MDIX, RJ45 Ethernet interface | ||||||||||||||||||||||||||||||
| Cellular interfaces + navigation | 1 LTE radio category 4, 3GPP E-UTRA release 10, MIMO DL with Rx diversity. Dual SIM. LTE, UMTS/HSPA+, GSM/GPRS/EDGE (worldwide). Multi-constellation GNSS (GPS, Galileo, GLONASS, Beidou). Requires an active antenna. | ||||||||||||||||||||||||||||||
| Cellular radio data rate | 150 Mbps ↓ & 50 Mbps ↑ (maximum radio data rate) | ||||||||||||||||||||||||||||||
| Cellular operating frequencies | FDD LTE: B1/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 TDD LTE: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 | ||||||||||||||||||||||||||||||
| WiFi interface | 802.11n (MIMO 2T2R), 300 Mbps, 2.4 / 5 GHz, ANI (Adaptive Noise Immunity) | ||||||||||||||||||||||||||||||
| WiFi radio data rate | 802.11a: 6, 9, 12, 18, 24, 36, 48 & 54 Mbps 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 & 54 Mbps 802.11n: MCS0-7, 2 streams (6.5 to 300 Mbps) | ||||||||||||||||||||||||||||||
| WiFi operating frequencies | ISM : 2.4-2.483 GHz (up to 14 channels) UNII : 5.15-5.25 GHz (up to 4 channels) UNII-2 : 5.25-5.35 GHz (up to 4 channels) UNII-2 ext : 5.470-5.725 GHz (up to 11 channels) UNII-3 : 5.725-5.825 GHz (up to 4 channels) Supports DFS and TPC | ||||||||||||||||||||||||||||||
| Output power | WiFi : • 2.4 GHz : up to 23.5 dBm (aggregate) • 5 GHz : up to 21 dBm (aggregate) LTE : • GSM : up to 33 dBm | ||||||||||||||||||||||||||||||
| Sensitivity max. | WiFi : • 2.4 GHz : -94 dBm • 5 GHz : -96 dBm LTE WCDMA B5/B8 receiver : -110.5 dBm | ||||||||||||||||||||||||||||||
| Radio connectors | WiFi : 2 x RP-SMA LTE : 2 x SMA (female) GNSS : 1 x SMA (female) | ||||||||||||||||||||||||||||||
| Security | Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3, client isolation in AP mode | ||||||||||||||||||||||||||||||
| WiFi modes | AP, client, MESH (IEEE 802.11s), infrastructure, AD-HOC, fast roaming (less than 30 ms), WMM QoS | ||||||||||||||||||||||||||||||
| Ethernet networking | Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay | ||||||||||||||||||||||||||||||
| Ethernet routing | Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router | ||||||||||||||||||||||||||||||
| Administration | http, https, SNMP agent (V1, V2C, V3), WaveManager administration software | ||||||||||||||||||||||||||||||
| I/O | – 2 solid state relay output warnings (with configurable action), 1 Form A, 60VDC 80mA max – 2 inputs for external device control 24VDC max | ||||||||||||||||||||||||||||||
| LEDs Signaling | Radios : activity – status | Ethernet : 10/100/1000 link – activity | GPS : status | Power : on-off (x2) | ||||||||||||||||||||||||||||||
| Power supply | +9VDC to +48VDC (redundant, 5-pin Phoenix connector) or PoE 802.3af powered device (from model V2) | ||||||||||||||||||||||||||||||
| Consumption | 9.6 W typical – 12 W maximum | ||||||||||||||||||||||||||||||

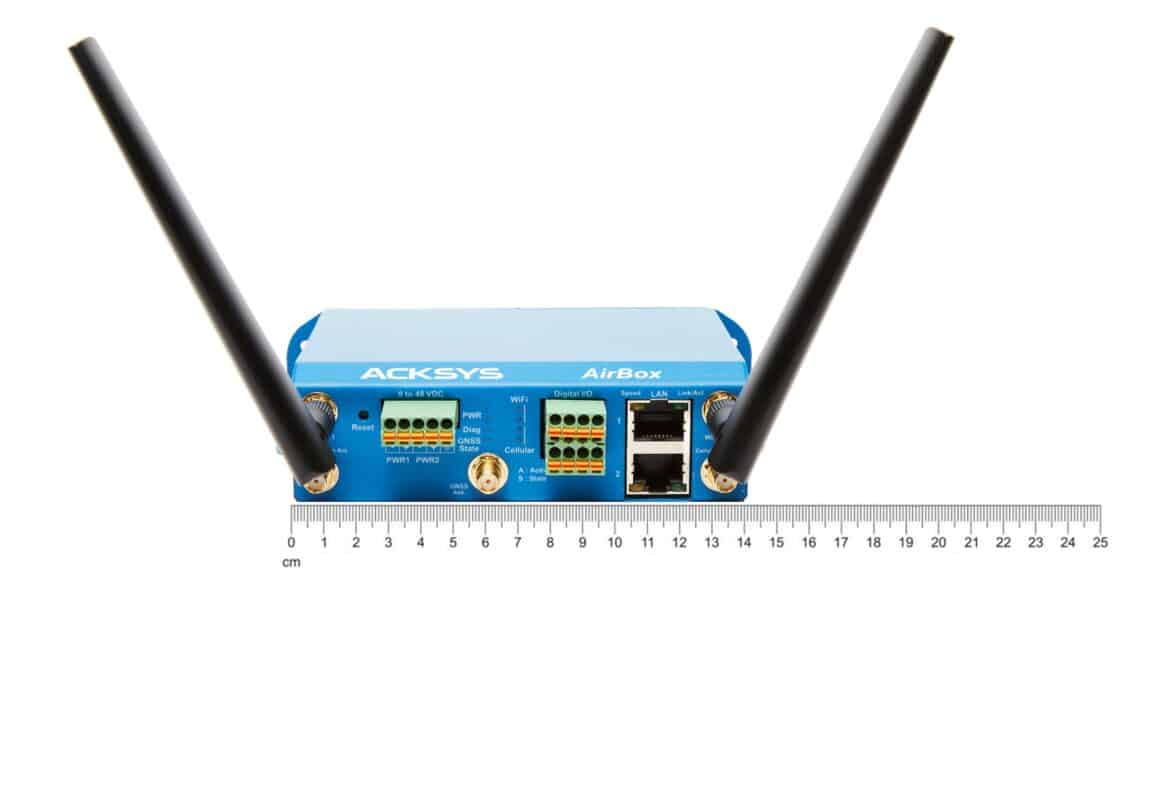

| Dimensions & weight | Compact case L : 141.2 x l : 99 x h : 35 mm, weight without accessories : 347g | ||||||||||||||||||||||||||||||
| Standards and certifications |
|
||||||||||||||||||||||||||||||
| Environment | IP30 Operating temperature: -20°C to +60°C , storage: -40°C à +85°C, humidity: 0% to 99% (non-condensing) | ||||||||||||||||||||||||||||||
| Warranty | 5 years | ||||||||||||||||||||||||||||||
| AirBox/14 | WiFi router (802.11n) + 4G/LTE (EMEA, Korea, Thailand, India) + multi-constellation GNSS interface, 2-port Gigabit Ethernet, 2 DI + 2 DO, shipped with 2 WiFi antennas (WL-ANT-2458 / 3- ORPS) and 2 cellular antennas (ANT727 / 2OSM) reference stopped and replaced by AirBox 17 |
| AirBox/17 | WiFi router (802.11n) + 4G/LTE (world) + multi-constellation GNSS interface, 2-port Gigabit Ethernet, 2 DI + 2 DO, shipped with 2 WiFi antennas (WL-ANT-2458/3-ORPS) and 2 cellular antennas (ANT727 / 2OSM) |
| Additional accessories: | WL-ANT-2458/3-ORPS ANT727/2OSM PWS12-UNI-PH3 WL-FIX-RD2Flat & swivel omnidirectional antenna, 2.4GHz (3dBi) / 5GHz (4dBi), RPSMA Omni, cellular antenna, 2dBi, SMA, 700-960 / 1700-2170 / 2300-2700 MHz AC (110V / 220V) to 12VDC power adapter with cable terminated by a 3-pin Phoenix terminal block Din rail fixing kit |
| [FirmTabName] | Version | Download |
|---|---|---|
WaveOS firmware upgrade package, release notes | 4.26.1.1 | |
MIB (SNMP) | 3.22.0.1 | |
WaveOS : Download the user guide | – |
|
4G cards firmware update package | 6.3 |  |
| [FirmTabName] | Version | Download |
|---|---|---|
| WaveManager : Deployment & centralized management software for WaveOS-based WiFi products, Windows and Linux platforms | 3.6.0.1 | |
Supplementary catalog (graphic resources): download required | 1.6.0.1 | |
| Download the user guide | – | |
