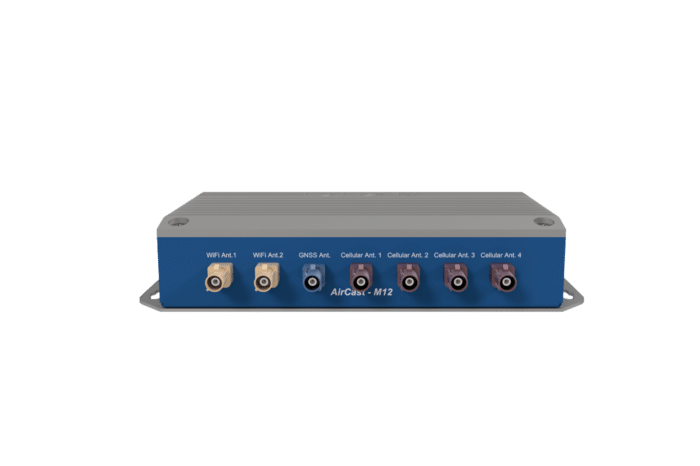

AirCast-M12

APPLICATIONS Public transportation (buses and trams) Public safety vehicles Trucks

AirCast is the cutting-edge router designed for connecting fleets of vehicles such as buses, trams, trucks, emergency and public safety vehicles, etc., thanks to its full cellular 5G capabilities, dual-band WiFi 6 (2.4/5GHz) and GNSS (GPS, Galileo, GLONASS, Beidou) interfaces, as well as its 4 Gigabit Ethernet ports. Mobility : AirCast is equipped with high-speed wireless technologies for transmitting data to and from vehicles. For public transport applications (bus and trams), AirCast makes it possible to pool all data streams (SAE, ticketing, PIS, CCTV…) on a single router. Its WiFi fast roaming capabilities ensure continuous data transmission when buses arrive at the depot. Its automatic switching capabilities between WiFi and 5G ensure service continuity when they go into operation. Smart policy routing (5G / WiFi), along with segmentation and prioritization capabilities, allow seamless transmission of onboard applications (ticketing, AVLM/ACS…) including high-demanding real time applications such as CCTV and VoIP with no failure. Remote administration and monitoring of the routers’ fleet is performed with cloud or ‘on-premise’ ACKSYS WaveManager. The AirCast MQTT broker and bridge facilitate data transmission, system maintenance and monitoring of all onboard equipment. Cybersecurity : The onboard network being an extension of the operator IT network, it is now mandatory to secure the vehicle network according to NIS 2 regulations. ACKSYS AirCast integrates the latest cyber-security standard EN18031, including secure boot, robust encryption and authentication, along with network isolation firewall to safeguard critical communications.

Ethernet Interface	4 ports Gigabit Ethernet Base TX auto-sensing, auto MDI/MDIX cross-over (10/100/1000) M12 coded X 8 points
Radio connectors	7 fakra connectors : WiFi 6 (2 x I-coded), 5G (4 x D-coded), GNSS (1 x C-coded) according to ITxPT standard
Cellular Interfaces + Navigation	5G SA and NSA with 4 streams + 1 active GNSS, WW coverage (4G/3G compatible) Dual SIM Multi-constellation GNSS (GPS, Galileo, GLONASS, Beidou). Requires an active antenna.
Cellular radio data rate	TBC 5G SA Sub-6 : DL 2.4 Gbps; UL 900 Mbps 5G NSA Sub-6 : DL 3.2 Gbps; UL 550 Mbps LTE : DL 1.6 Gbps; UL 200 Mbps DC-HSDPA : DL 42 Mbps HSUPA : UL 5.76 Mbps WCDMA : DL 384 kbps; UL 384 kbps
Cellular operating frequencies	TBC 5G NR SA : n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 DL 4x 4 MIMO : n1/n2/n3/n7/n25/n30/n38/n40/n41/n48/n66/n70/n77/n78/n79 UL 2x 2 MIMO : n38/n41/n48/n77/n78/n79 5G NR NSA : n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/n26/n28/n29/n30/n38/n40/n41/n48/n66/n70/n71/n75/n76/n77/n78/n79 DL 4x 4 MIMO : n1/n2/n3/n7/n25/n30/n38/n40/n41/n48/n66/n70/n77/n78/n79
WiFi Interface	2 concurrent radios, 2.4GHz and 5Ghz WiFi 6 MiMo 2×2 (IEEE 802.11 ax), ANI (Adaptive Noise Immunity)
WiFi radio data rate	Up to 1201Mbps @ 5GHz, and up to 573.5 Mbps @ 2.4GHz
WiFi operating frequencies	ISM : 2.4-2.483 GHz (up to 14 channels) UNII : 5.15-5.25 GHz (up to 4 channels) UNII-2 : 5.25-5.35 GHz (up to 4 channels) UNII-2 ext : 5.470-5.725 GHz (up to 11 channels) UNII-3 : 5.725-5.825 GHz (up to 4 channels) Supports DFS and TPC
Max. output power	WiFi : 2.4 GHz: up to 22 dBm (aggregate) / 5 GHz : up to 21 dBm (aggregate) 5G : up to xxx dBm
Sensitivity max.	WiFi : 2.4 GHz : -86 dBm / 5 GHz : -91 dBm 5G : xxx dBm
Security	EN18031 certified with firewall, DoS, https, MAC filtering, WPA/WPA2/WPA3-Personal & Enterprise (IEEE 802.1X/RADIUS), tunnels L2 (GRE), VPN (OpenVPN, IPsec), SNMP V3, Rogue AP detector, Secure BOOT
WiFi Modes	Client, router, Access point, Rogue AP detector
Ethernet networking	IPv4/IPv6 compliance, frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay
Ethernet routing	Multicast (PIM), IP redundancy (VRRP), static routes, NAT 1:1, NAT router, router
Administration	http, https, MQTT, SNMP agent (V1, V2C, V3), CLI Micro-SD card : save/ restore configuration and logs storage WaveManager On premise or Cloud administration tool
LEDs signaling	Ethernet : link – state | Power : on-off | SD card status and config file present | WiFi : status | 5G: activity, state | GNSS state
Power supply	7 to 48 VDC, or PoE+ 802.3at ITxPT: delayed shutdown and full power/low battery management 6-point Phoenix connector
Consumption	TBC : Typical power consumption 25W / Recommended power supply 30W
Dimensions & weight	Product: compact rugged aluminum enclosure, TBC: 180 x 40 x 100 mm, 600 g
Standards and certifications	ITxPT compliant CE (RED) Cybersecurity : EN 18031 Safety : EN 62368-1, EN62311 EMC : EN 301-489-1, EN 301-489-17 Radio: • WiFi : EN 300 328 (2.4 GHz), EN 301 893 (5 GHz, DFS) • 5G : EN 301 908 (-1, -2,-13), EN 301 511, EN 303 413 FCC Radio: • WiFi : FCC ID xxx • 5G : FCC ID xxx Automotive EMC : ECE R10 (UTAC E2/ R10) Environment : • Shock and vibration : EN 61373  • Fire/smoke : UNR118, RoHS, WEEE Railway CEM : EN 50155 Environment: • Shock and vibration : EN 61373 • Fire/smoke : EN45545
Environment	IP40 seal rating • Operating: -40°C to +70°C (HR 0-99%)
Warranty	5 years

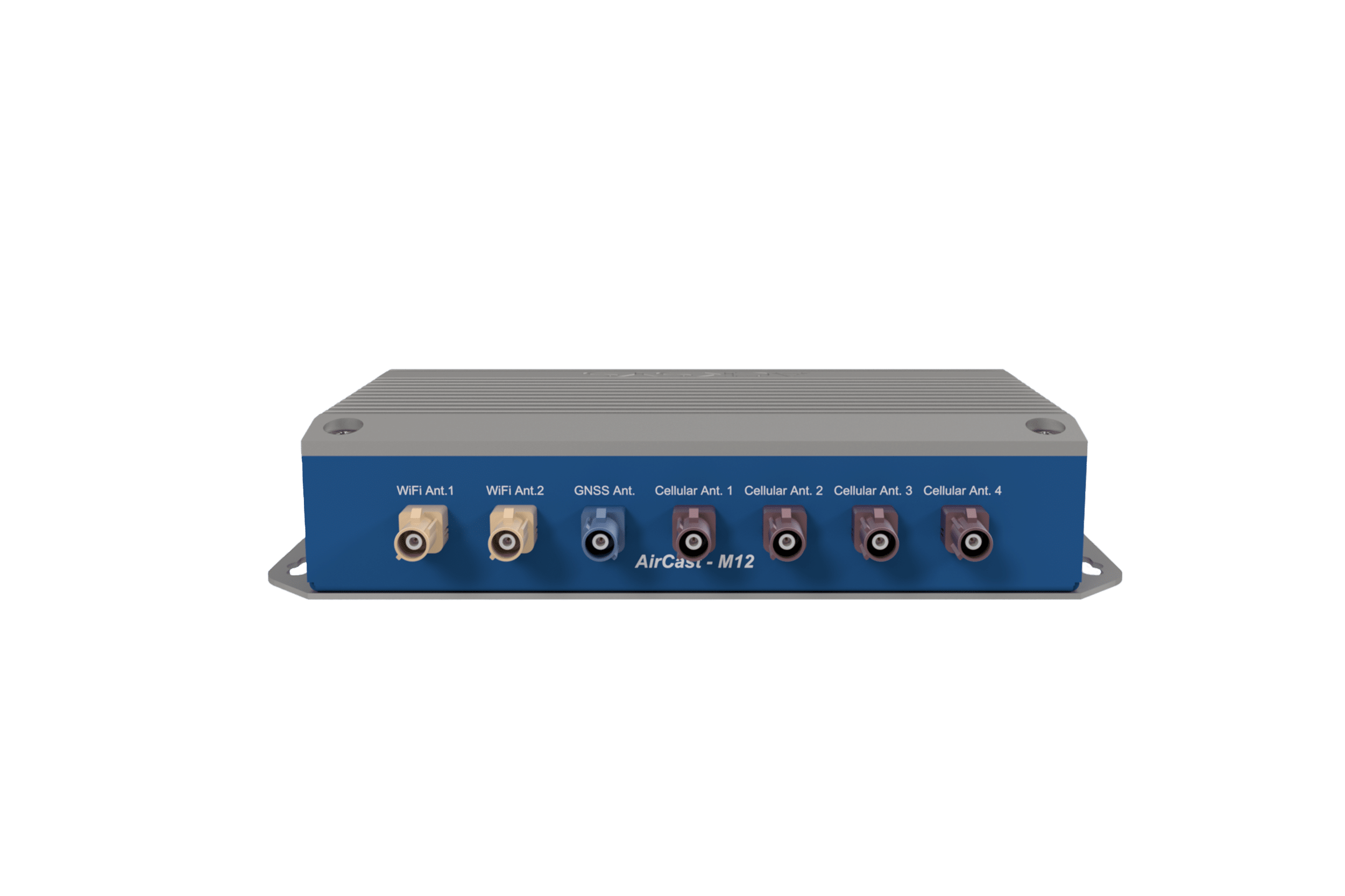

AirCast-M12

WiFi 6 router + 5G (world) + multi-constellation GNSS interface, 4 ports Gigabit Ethernet, shipped without antennas
