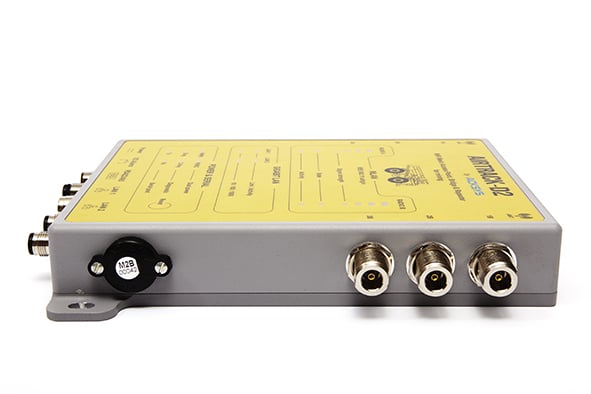

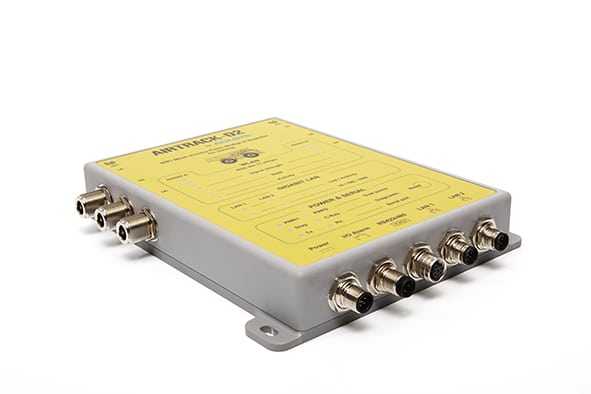

AIRTRACK-D2

Ethernet link

2-port Gigabit Ethernet 10/100/1000 auto-sensing, waterproof Ultra-Lock® 8-point M12 connectors plug & play mode & auto MDI/MDIX cross-over

Serial port

One insulated RS422/485 serial port (waterproof ultra-lock M12 connector) for connection to the target equipment existing network (protocol implementation on demand)

WiFi network

Compliant to the IEEE 802.11 a/b/g/n MIMO 3T3R, 2.4 / 5 GHz standards, dual radio system with redundancy

Data rate

Up to 2 x 300 Mbps

Radio channels

2.4 GHz (802.11b/g/n): 14 channels / 5 GHz (801.11a/h/n): 24 channels

Output power

Transmitter +20 dBm (TPC), +26 dBm with the WLn-RF400MW option

Sensitivity

Receiver -92 dBm for IEEE 802.11 a/g/n and -95 dBm for IEEE 802.11b

Antennas connections

Up to six 2.4 / 5 GHz MIMO antenna (not shipped with the product), N-type connectors, optional lightning surge protection

Modulation

OFDM: BPSK, QPSK, 16QAM, 64QAM / DSSS: DBPSK, DQPSK, CCK

Security

64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (centralized RADIUS authenticator & supplicant), MAC addresses filtering, SSID broadcast control

Modes

Access point to build a WiFi network infrastructure, client to connect any Ethernet equipment to this network, repeater, Mesh point (IEEE 802.11s), infrastructure, AD-HOC, client router, WMM QoS, multicast and IGMP-Snooping modes are fully supported; the 2 radios can be used to create a redundant link, roaming

Administration

Built-in WEB interface, the setup of the device is achieved using any web browser, SNMP agent, ACKSYS NDM, serial port, Telnet/SSH, CLI, C-Key (save / restore configuration key)

Operating systems

Windows, Linux, UNIX as well as any operating system supporting TCP/IP

Signaling

LEDs signaling for radio quality, activity and status on each radio, Link 10/100/1000 and activity on each LAN port, TXD and RXD for the serial port, MAIN & AUX power supply, product diagnostic

Alarms

Relay output warning: power failure, WLAN connection failure, Watchdog, over heating or user defined (SNMP); 1 FORM A solid state relay, 170VDC 0.1A (ultra-lock waterproof M12 connector)

Inputs

One insulated input for external device control (ultra-lock waterproof M12 connector)

Power supply

From + 9 to 72 VDC dual DC power supply input, PoE+ (IEEE802.3at type 2) or insulated 24 VDC

Consumption

16W typical power consumption (21W maximum with two high power radio cards)

Dimensions & weight

Shock & vibration proof rugged aluminum enclosure, (L: 257 x W: 200 x H: 37mm), 1630g

Standards

EN 301489-17 & EN 61000-6-2 (CEM), IP66 seal rating, EN61373 (shocks & vibrations)

Environment

Operating temperature : -25°C to +70°C or extended -40°C to +75°C, storage : -40°C to +85°C
Optional PTC heater for -55°C operation (additional 24VDC 15W power supply required)

AIRTRACK-D2 [Hx]

WiFi access point, 2-port Ethernet, client, repeater & Mesh point (IEEE 802.11a/b/g/n) for above ground mining applications, dual DC power input from +9VDC to +72VDC, POE IEEE 802.3at, one set of 2 meters cables (Ethernet & power cable), IP66

AIRTRACK-D2/24 [Hx]

Insulated power supply: +9VDC to +36VDC (24VDC nominal), POE not available

WLg-ANT-LSP-N

Lightning Surge Protector 50 Ohms N-Type antenna 5 KA (0-6 GHz)

WLn-PTC

PTC heater for -55°C cold start and operation

PWS-24-UNI-M12

AC power supply 110-240V, DC input (24VDC 25W) with 2 meters M12 to stripped cable for AIRTRACK-D2

Hx means high power version (400mW) and extended temperature range (-40°C to +75°C)
