WiFi access point, client & repeater
NOTE : AIRTRACK-S4 has reached the end of its life cycle (to know more about its different deadlines click here).
The recommended replacement product is : RailBox. Your sales representative is at your disposal for any questions.

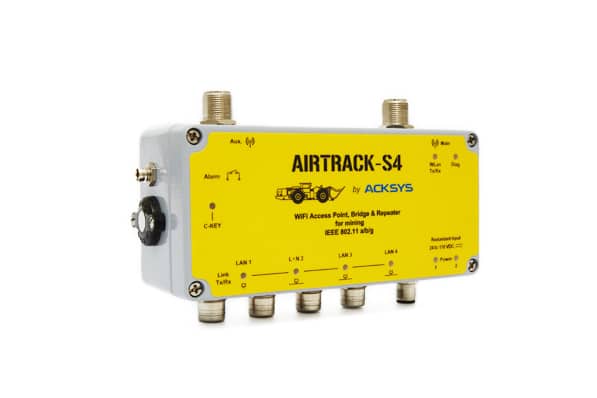

AIRTRACK-S4 is a rugged equipment designed for underground mines for: tele-operation of heavy machinery from a remote control station, collision avoidance, localization of people and goods and other services as evacuation signaling systems, Voice over Internet Protocol (VoIP) wireless phones, mobile data download (smartphones, tablets…), mobile & fixed IP video…
It fulfills the most severe requirements in terms of operating environment: extended temperature range -40°C to +80°C, shock and vibration proof, IP66 seal rating for protection against dust and water projections.
AIRTRACK-S4 works with any kind of industrial protocols carried by Ethernet TCP/IP such as PROFINET, PROFIsafe…
|
Ethernet link |

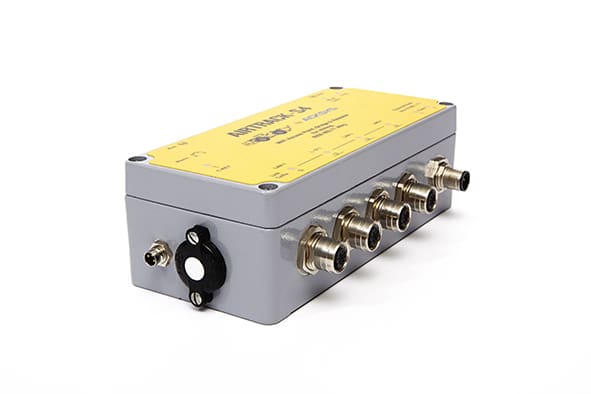

4-port Ethernet 10/100 auto-sensing, waterproof M12 connectors (D-coding), plug & play mode & auto MDI/MDIX cross-over
|
||
|
WiFi network |
Compliant to the IEEE 802.11a/b/g 2.4 / 5 GHz standards, transmission Power Control (TPC)
|
||
|
Data rate |
Up to 108 Mbps (Super AG mode)
|
||
|
Channels |
2.4 GHz (802.11b/g): 14 channels / 5 GHz (801.11a/h): 19 channels
|
||
|
Output power |
Transmitter +20 dBm (TPC), +26 dBm with the [Hx] option
|
||
|
Sensitivity |
Receiver -92 dBm for IEEE 802.11 a/g and -95 dBm for IEEE 802.11b
|
||
|
Antennas |

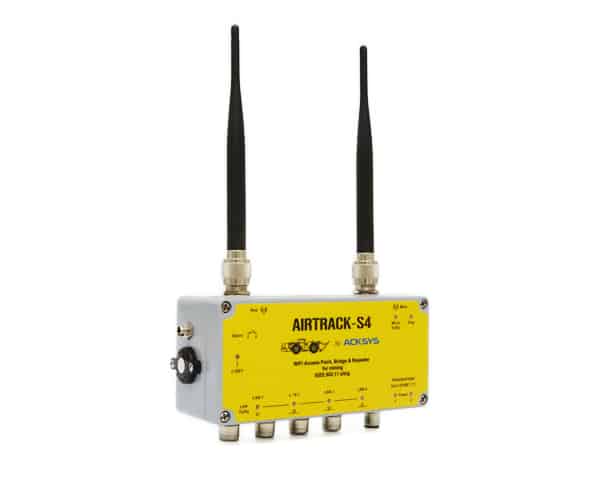

Two 2dBi 2.4 / 5 GHz antenna, N-type connectors
|
||
|
Modulation |
OFDM: BPSK, QPSK, 16QAM, 64QAM and DSSS: DBPSK, DQPSK, CCK
|
||
|
Security |
64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (RADIUS authenticator & supplicant), MAC addresses filtering, SSID broadcast control
|
||
|
Modes |
Access point to build a WiFi network infrastructure, client to connect any Ethernet equipment to this network, repeater, infrastructure, AD-HOC and client router modes are supported, fast roaming (less than 50 ms)
|
||
|
Administration |
Thanks to its built-in WEB interface, the setup of the device is achieved using any web browser installed on your computer (Internet Explorer, Netscape, Mozilla …), SNMP agent, ACKSYS NDM, C-Key (save / restore configuration key)
|
||
|
Operating systems |
Windows, Linux, UNIX as well as any operating system supporting TCP/IP
|
||
|
Signaling |
LEDs signaling for LAN, WLAN network activity, 10/100 mode, MAIN & AUX power supply
|
||
|
Alarms |
Relay output warning: power failure, WLAN connection failure, Watchdog or user defined (SNMP)
|
||
|
Power supply |
Insulated +24 to +110 VDC, dual input (M12 connector)
|
||
|
Consumption |
8W typical power consumption
|
||
|
Dimensions & weight |
Shockproof rugged aluminum enclosure, (L: 80 x l: 175 x h: 57 mm), 920 g
|
||
|
Standards |
EN 301489-17 & EN 61000-6-2 (CEM), IP66 seal rating, ISO 11452 sections 1, 2, 5, 7 (electrical disturbances), EN61373 (shocks & vibrations)
|
||
|
Environment |
Operating temperature : -25°C to +70°C, extended -40°C to +80°C with [Hx] option (HR 0-99%), storage : -40°C to +100°C
|
NOTE : AIRTRACK-S4 has reached the end of its life cycle (to know more about its different deadlines click here).
The recommended replacement product is : RailBox. Your sales representative is at your disposal for any questions.
|
AIRTRACK-S4 [Hx] |
WiFi access point, 4-port Ethernet, client & repeater (a/b/g) for underground mining applications, dual DC insulated power input from +24VDC to +110VDC, shipped with 2 dual band 2 dBi omni-directional (2.4 / 5 Ghz), one set of 2 meters cables (M12 to RJ45 and M12 to stripped cables)
Hx means high power version (400mW) and extended temperature range (-40°C to +80°C)
|
||
|
|
