Ready-to-use point-to-point wireless Ethernet bridge
NOTE : Ethernet Air-Pack has reached the end of its life cycle (to know more about its different deadlines click here).
The recommended replacement product is : AirLink. Your sales representative is at your disposal for any questions.
Ethernet-Air-Pack is a ready-to-use solution designed to replace any Ethernet cable between equipments (PC, IP video, printers …), replace the network cable between the RJ45-wall outlet and the computer or even to establish a wireless bridge between two independent Ethernet networks (between two buildings, two PLC’s networks …).
The kit is built around two pre-configured WiFi units already associated, installation doesn’t require any configuration.
Ethernet-Air-Pack relies on the WiFi 5 GHz standard (IEEE 802.11a) which is not widely used by WiFi equipments. This offers a good level of protection against perturbations generated by existing WiFi networks; you can install as much Ethernet Air-Pack as cables to be replaced.
|
Ethernet link
|
10/100 Base TX Ethernet interface, RJ45 connector |
||
|
Radio link
|
Compliant with WiFi IEEE 802.11a, data rate up to 108 Mbps
|
||
|
Power, sensitivity
|
Transmitter +20 dBm, Receiver –92 dBm, one 5 GHz 2 dBi antenna
|
||
|
Signaling
|
LAN & WLAN activity on LEDs
|
||
|
Administration |
SNMP and ACKSYS NDM
|
||
|
Power supply |
+9VDC to +48VDC power source, PHOENIX connector, 3.5 Watts typical, 5 Watts maximum
|
||
|
Dimensions & weight
|
Small sized enclosure L: 103 x W: 67 x H: 23 mm, weight 225 g
|
||
|
Environment |
Operating temperature: 0°C to +70°C, storage: -40°C to +80°C
|
NOTE : Ethernet Air-Pack has reached the end of its life cycle (to know more about its different deadlines click here).
The recommended replacement product is : AirLink. Your sales representative is at your disposal for any questions.
|
Ethernet Air-PACK |

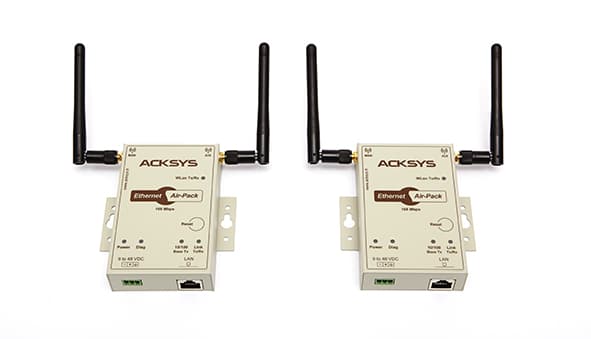

Ready-to-use Point-to-Point wireless Ethernet bridge kit including two independent radio units with 2 dBi antennas, two +12VDC power supplies and two RJ45 cross Ethernet cables (1 meter)
|
