The MCXUNI/BP cards are designed to drive from 8 to 64 (8-line module) asynchronous RS232/422 lines. Under certain conditions it is also possible to support synchronous serial links.

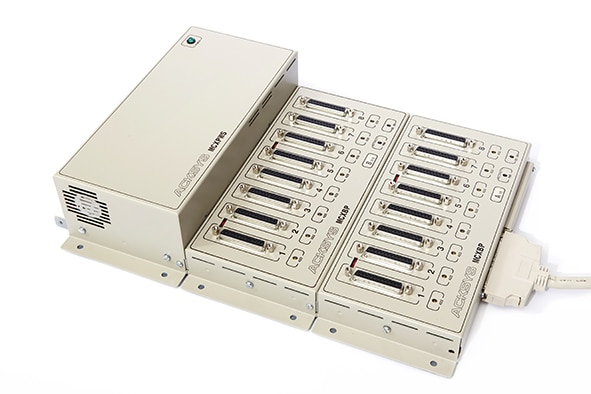

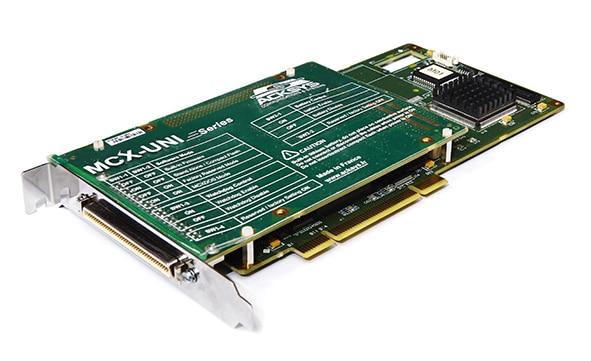

The solution is in the form of a universal PCI card (reference MCXUNI/BP -00) connected to 8-line external cases (MCX -BP).
We also offer a 8-line case model (reference MCX- BPMR) to have RS232, RS422 or RS485 isolated lines.
All the features of the card are accessible through a driver that allows addressing each of the serial channels as a traditional COM port (using the Win32 API on Windows or Linux file interface).
|
Baud rate |
Non-standard speed choice
|
||
|
Dimensions |
215mm (L) x 106 mm (H)
|
||
|
Power consumption |
+5V : 1.3 A max., +12V & -12V : 0 mA
|
||
|
Operating conditions |
-5°C to +65°C (our manufacturing process includes cyclical tests between -20°C and +80°C).
|
||
|
Standards |
CE
|
||
|
Peripheral drivers |
Windows and Linux peripheral drivers, controlled like standard COM ports
|
|
Number of channels |

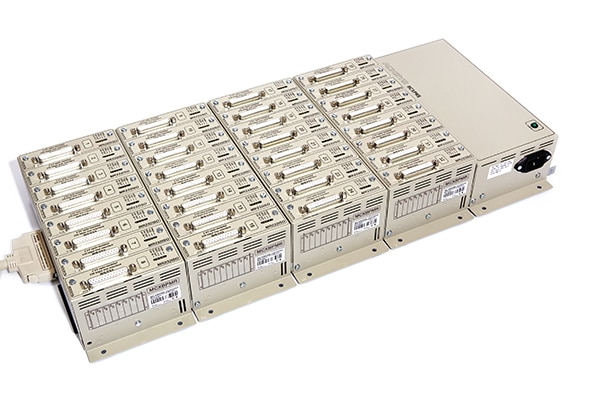

8 (up to 8 eight-line cases, that is 64 lines in total) MCXPWS power supply required from 3 cases
|
||
|
Format |
Asynchronous. 5, 6, 7 or 8 bits per character. 1, 11/2, 2 stop bits. Parity : Even, Odd, Mark, Space or none. The MCXBP case can also support certain synchronous formats (consult us)
|
||
|
Buffer size |
8ko in transmission and 512o in reception on each channel
|
||
|
Flow control |
Hardware (RTS/CTS) and/or (XON/XOFF)
|
||
|
Line interface |
RS232 / RS422 switchable channel by channel by software
|
||
|
Connectors |
SUB D25 female RS232 : TxD, RxD, RTS, DTR, CTS, DCD, RI, RxCLOCK, TxCLCK-I, TxCLOCK RS422 : ± RxCLOCK (120 ohms), ± RxDATA (120 ohms), ± TxCLOCK, ± TxDATA (± RxCLOCK & ± TxCLOCK on ports 1 to 3 only)
|
||
|
Protection |
All signals are protected against ESD and surges, they are all HF filtered
|
||
|
Speed max. |
RS232 : 250 kbps RS422 : 250 kbps (4 Mbps isochronous)
|
||
|
Signaling |
1 LED RS232/RS422 per line 1 LED for activity 1 LED for power
|
||
|
Dimensions, weight |
255mm (L) x 122 mm(l) x 35 mm(H), weight = 970g + 40g (connector protective covers) Cable’s size between the case and the board : 150cm
|
||
|
Power consumption |
+5V : 0.8 A max. +12V : 83 mA max. -12V : 83 mA max.
|
|
Number of channels |
8 (up to 8 eight-line cases, that is 64 lines in total) MCXPWS power supply required from 3 cases
|
||
|
Line interface |

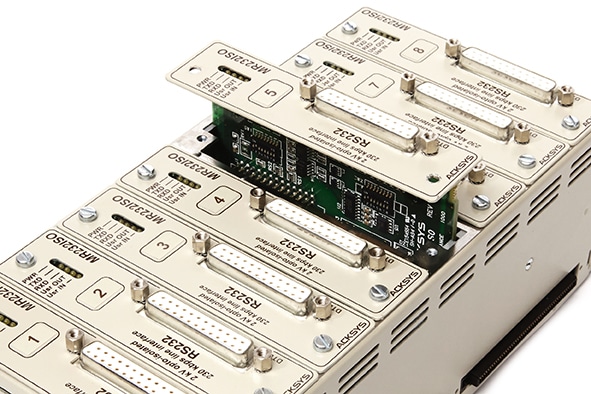

A dedicated user selectable module (MR232-ISO module for RS232, MR400-ISO module for RS422/RRS485, MRBdC module for 20mA current loop) offers customers a selection of 3 interfaces for each channel. Automatic turn around in RS485.
|
||
|
Connectors RS232 RS422/RS485 Current loop |
Sub D25 female (TxD, RxD, RTS/DTR/TxCLOCK at the user’s choice, CTS/DCD/RI/RxCLOCK/TxCLCK-I at the user’s choice) Sub D9 female (TxD, RxD, RTS/TxCLOCK, CTS/RxCLOCK) Sub D25 female (TxD, RxD)
|
||
|
Protection |
All signals are protected against ESD and surges, they are all HF filtered Galvanic isolation 2 kV eff.
|
||
|
Speed max. RS232 RS422/RS485 Current loop |
230 kbps 5 Mbps 57.6 kbps
|
||
|
Signaling |
5 LEDs (power, TxD, RxD, the output signal selected, the input signal selected) per channel
|
||
|
Dimensions, weight |
255mm (L) x 128 mm(l) x 86 mm(H), weight : 1580 g Cable’s size between the case and the board : 70 cm min / 75 cm max
|
||
|
Power consumption |
With 8 MR232 : 1.2 A With 8 MR400 : 800 mA
|
NOTE : MCX/BP range has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.
|
MCXUNI/BP-00 |
8 to 64 ports universal PCI MCX board (PCI & PCI-X), delivered without case or cable. Warning: this card cannot operate without external case.
|
||
|
MCXCPCI/BP-00 |
8 to 64 ports CPCI 6U MCX board, delivered without case or cable. Warning: this card cannot operate without external case.
|
||
|
MCXUNI/S
|
2-port universal PCI MCX board (PCI & PCI-X). This card doesn’t need any external case to operate.
|
|
MCX-BP |
8-channel RS232/422 expansion case
|
|
MCX-BPMR-8-xxxxxxxx |
MCX-BPMR case + a choice of 8 modules, delivered without MCX-CABLE
|
||
|
x = 2 : MR232ISO module x = 4 : MR400ISO module x = b : MRBDC module
|
|
MCX-CABLE |
Connection cable between the MCX-BP case (or MCX-BPMR) and the board, 1,5m length
|
||
|
MCX-PWS |
Power supply (required from 3 cases)
|
