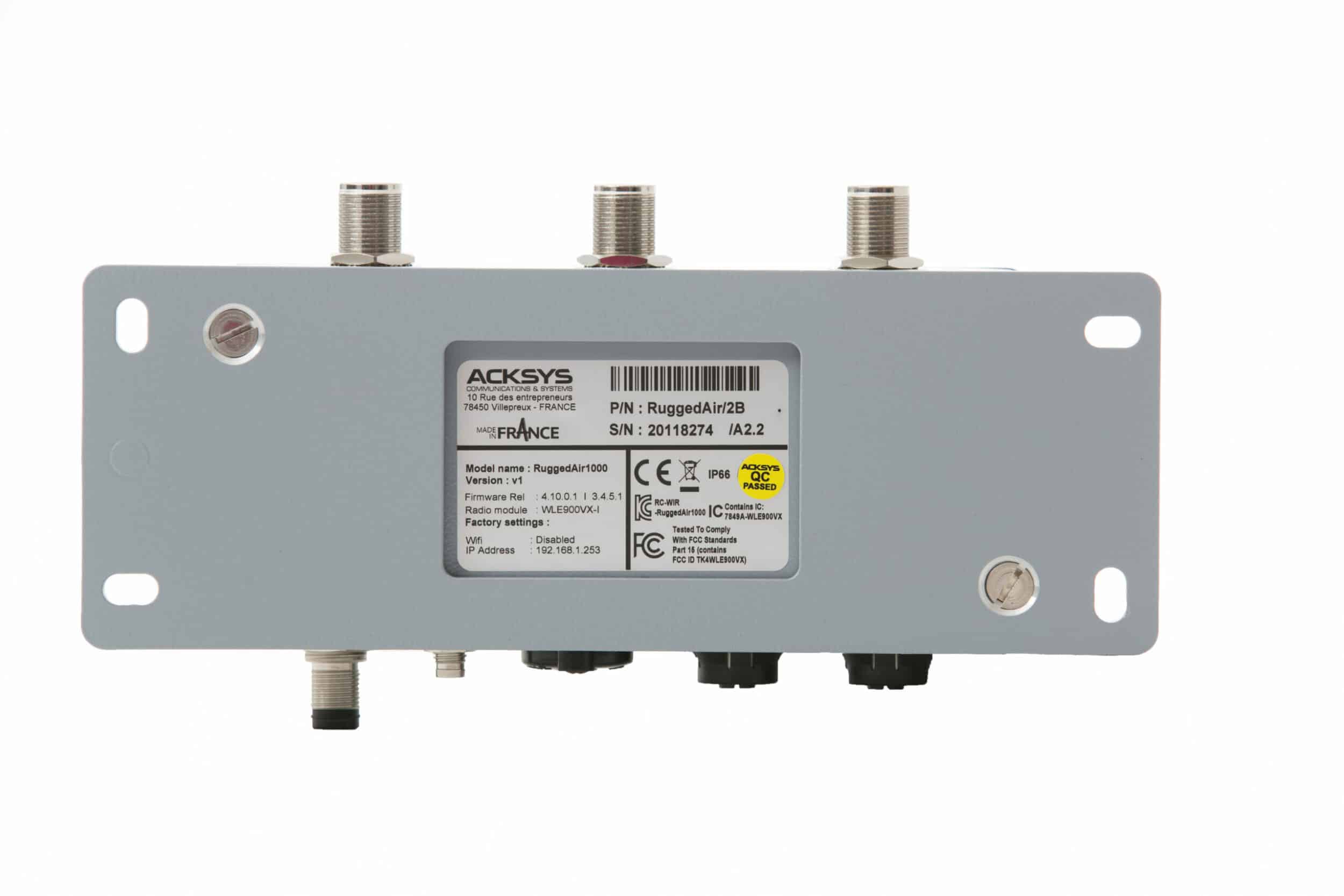

11ac WiFi access point for industrial applications in harsh environment and railway

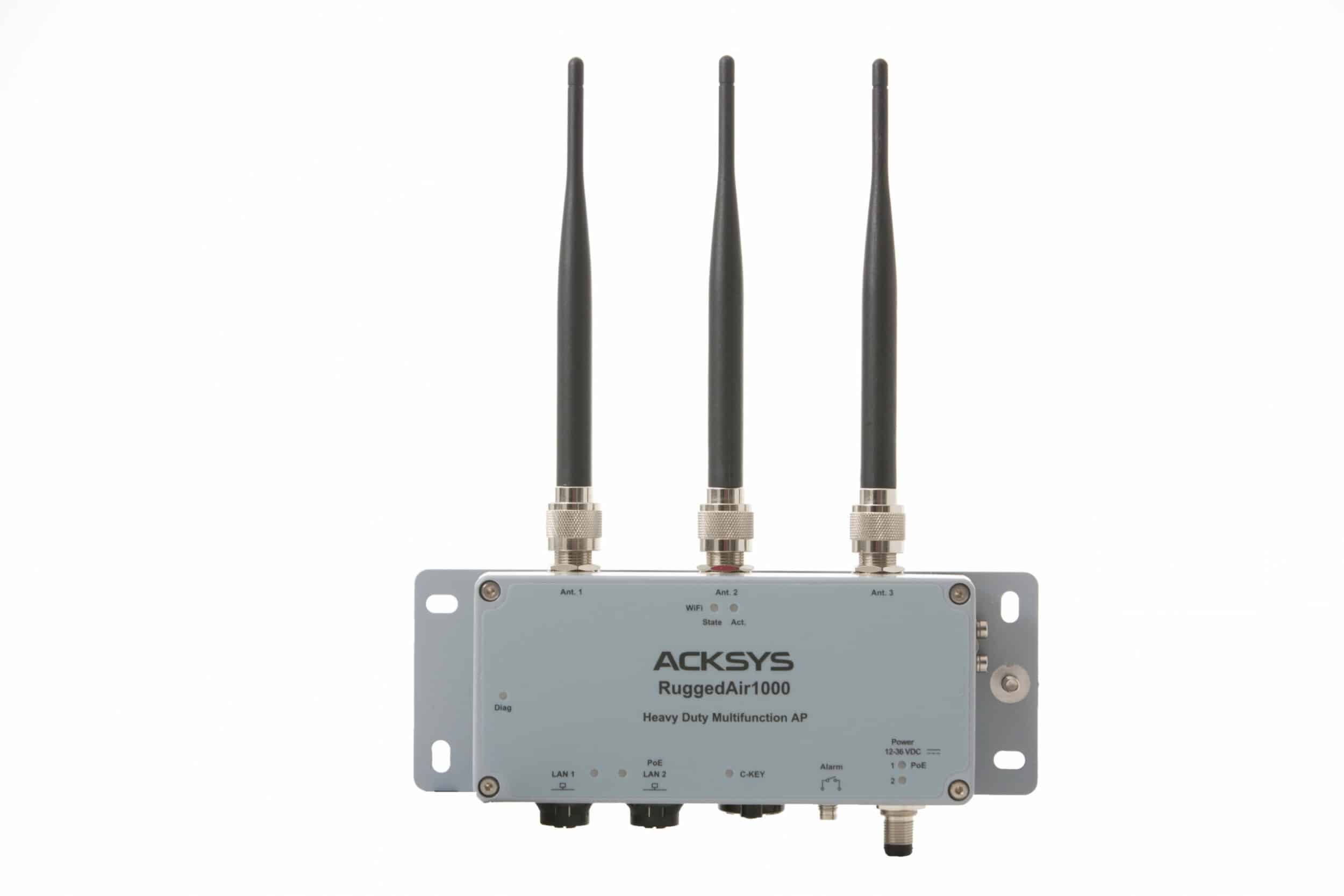

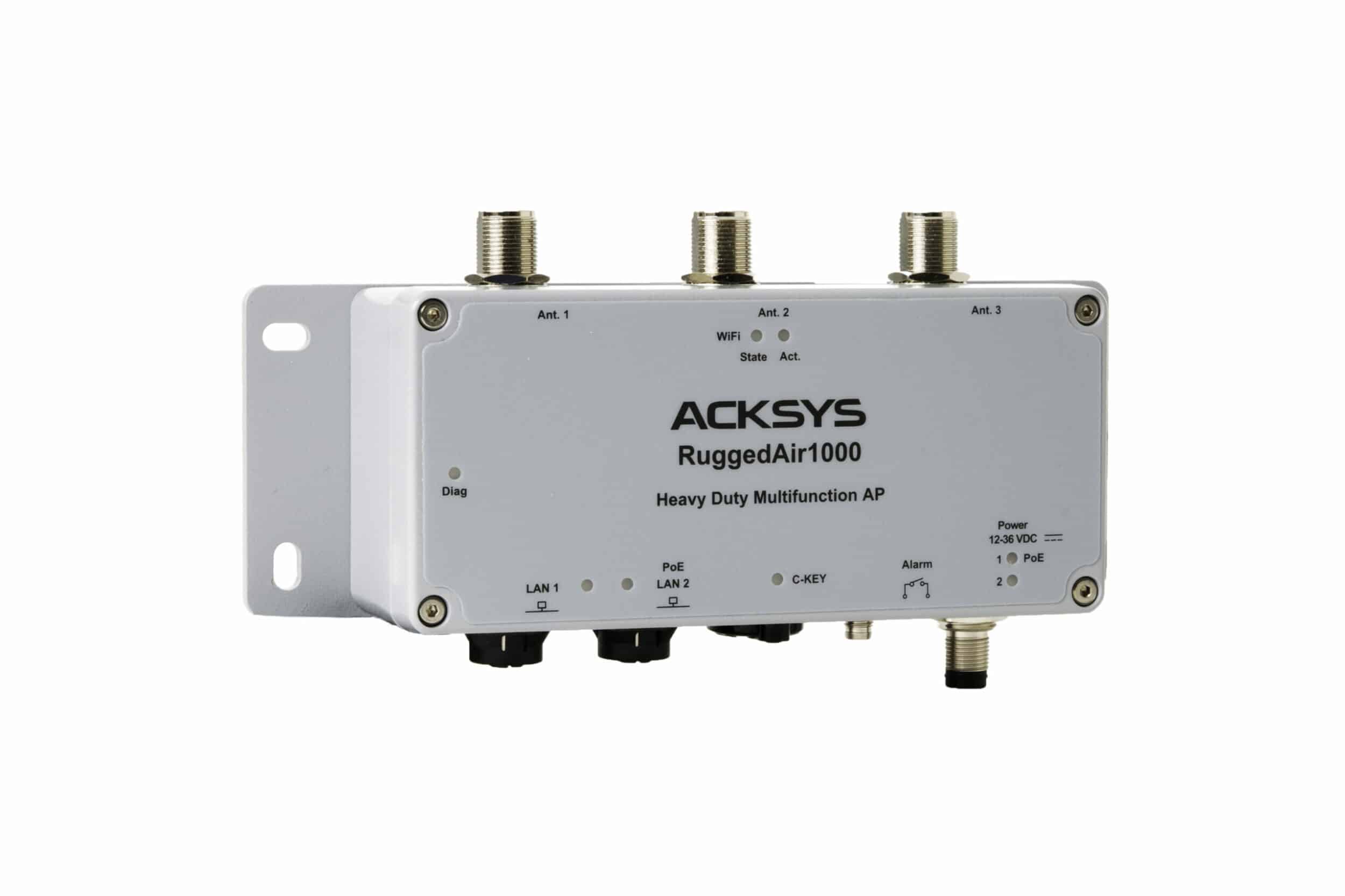

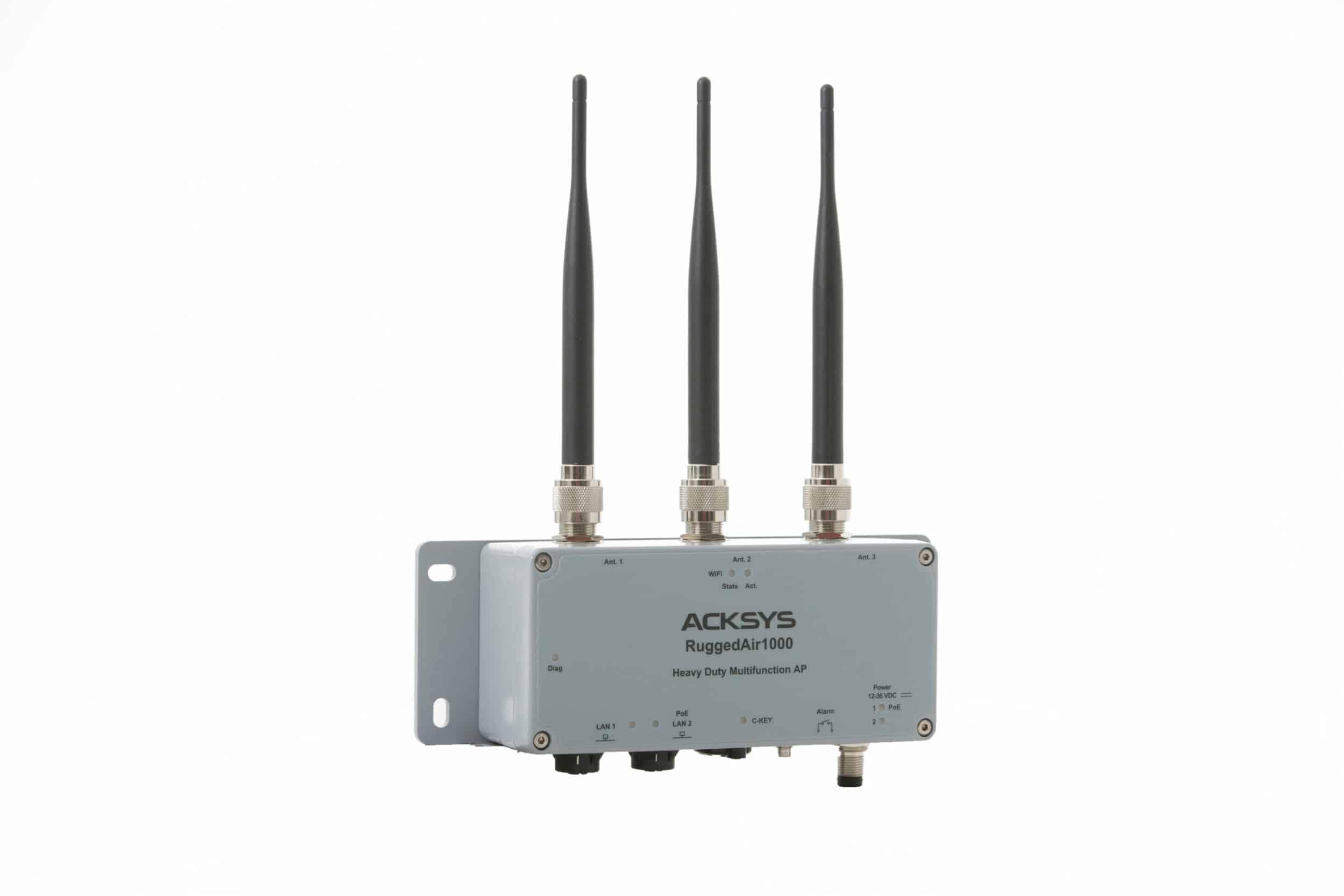

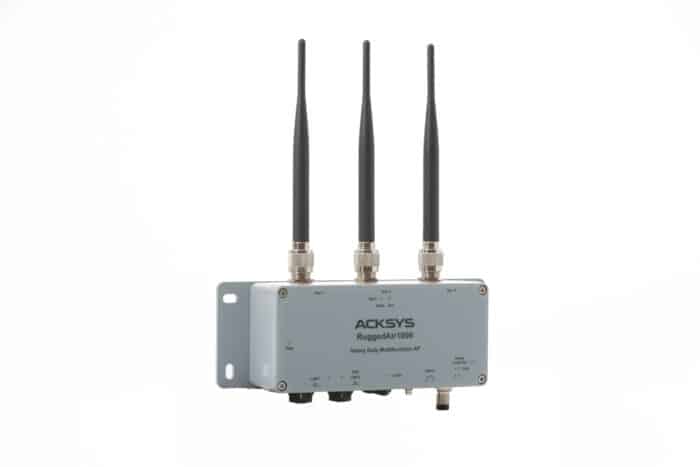

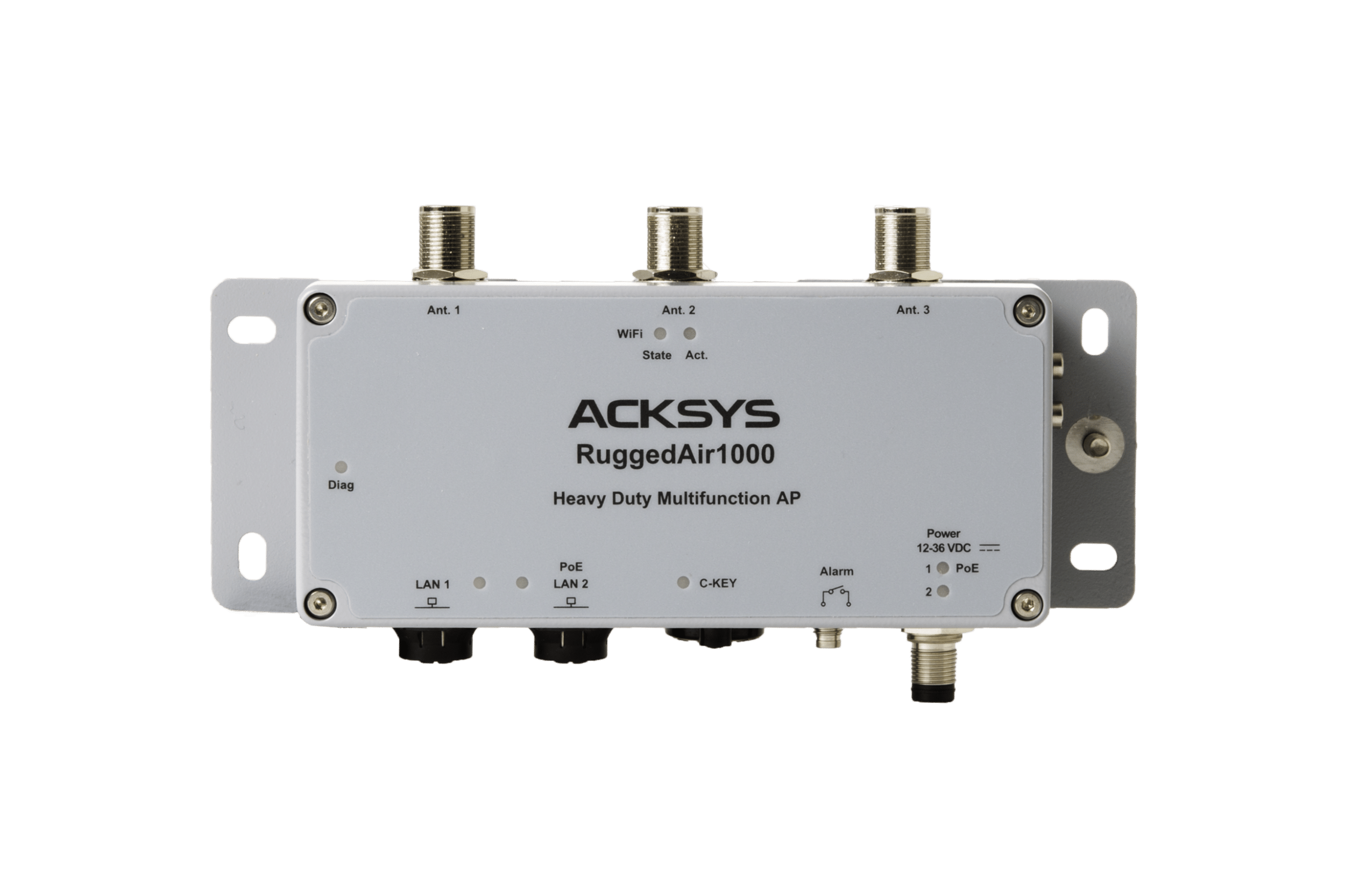

RuggedAir1000 is an “all-in-one” (multifunction product: access point, client, repeater, router & Mesh*) designed for industrial applications in harsh environment : railway, industry 4.0… > Public transportation: It can be used on the ground to create a WiFi coverage at the depot or on board to connect vehicles to the ground network (trams, subways), for car-to-car communication and as an access point for passengers. > Industry 4.0: it allows high-speed data transmission indoors and outdoors thanks to its extended WiFi coverage and/or from a connected mobile device.
It integrates advanced security standards (WPA2-Enterprise (Radius), DoS, Firewall …) as well as routing and filtering functions to facilitate mass deployments.
* MESH point and fast roaming function to come.|
Ethernet interface |

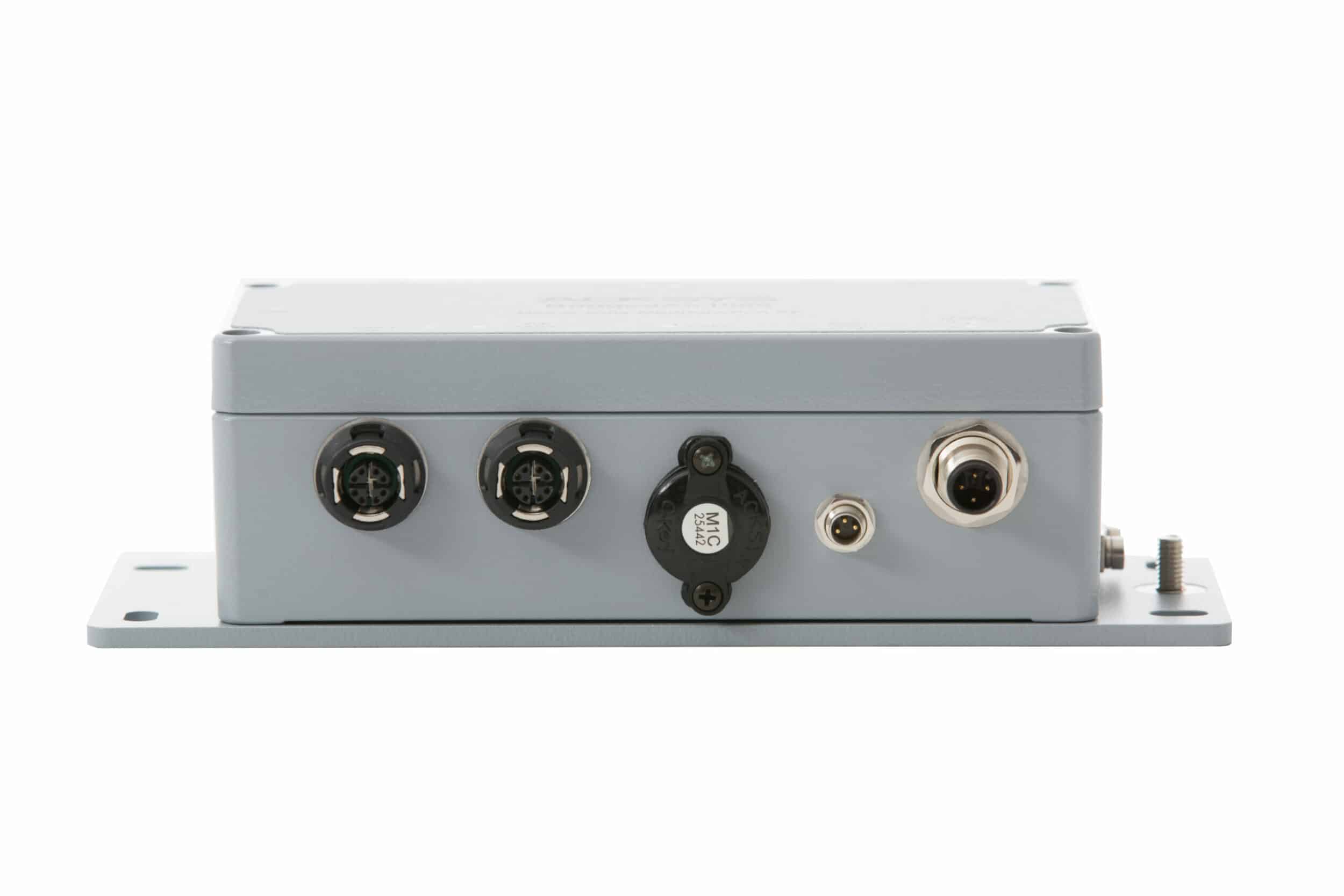

2-port Gigabit Ethernet 10/100/1000 auto-sensing base T, auto MDI/MDIX cross-over, M12 X-coded connectors
|
||||||||||||||
|
WiFi interface |
1 radio 802.11ac (MIMO 3T3R, 1.3 Gbps), ANI (Adaptive Noise Immunity)
|
||||||||||||||
|
WiFi radio data rate |
802.11a: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
|
||||||||||||||
|
Operating frequencies |
IISM : 2.4-2.483 GHz (up to 14 channels)
|
||||||||||||||
|
Output power |
WiFi : 2.4 GHz : up to 23.8 dBm (3 RF channels) / 5GHz : up to 22.8 dBm (3 RF channels)
|
||||||||||||||
|
Sensitivity max. |

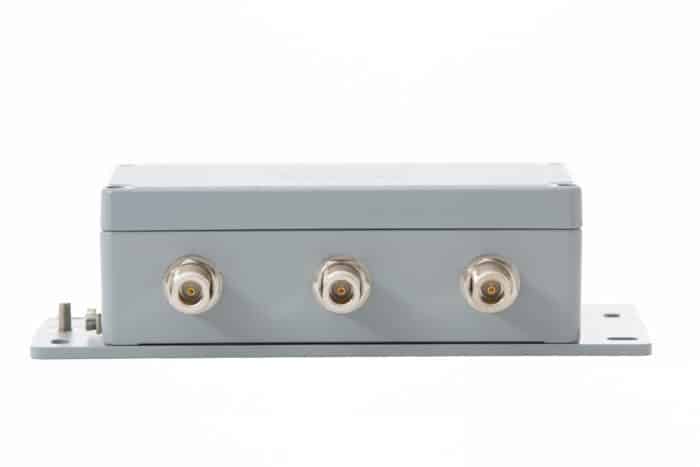

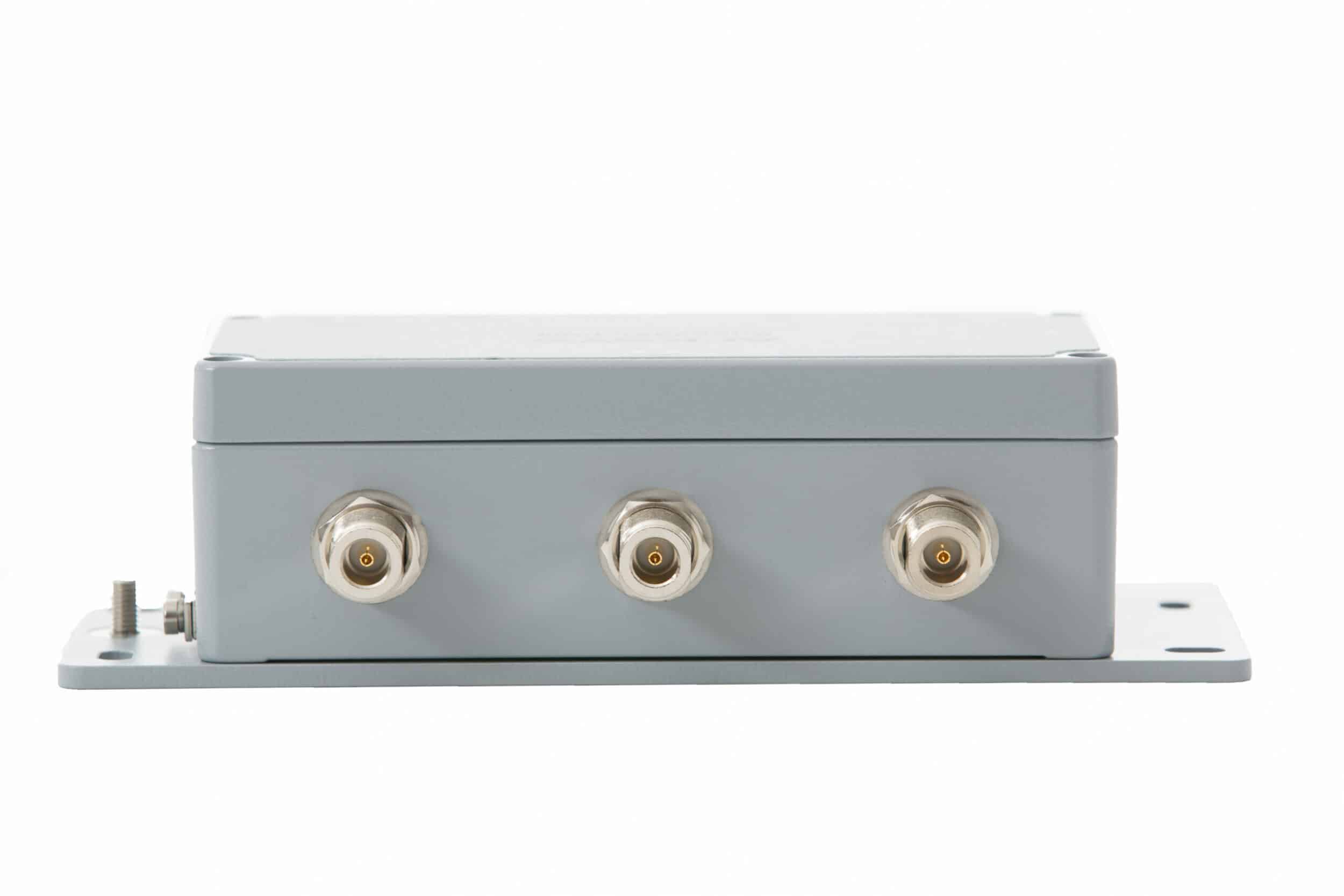

3 type N connectors |
||||||||||||||
|
Security |
Firewall, DoS, https, MAC filtering, WPA/WPA2-Personal & Enterprise (IEEE 802.1X/RADIUS), WEP, tunnels L2 (GRE), VPN (OpenVPN), SNMP V3
|
||||||||||||||
|
WiFi modes |
AP, client, MESH (IEEE 802.11s) (*), infrastructure, AD-HOC, fast roaming (less than 30 ms) (*), WMM QoS, SRCC coupler
|
||||||||||||||
|
Ethernet networking |
Frames filtering, bridging, repeater, STP/RSTP, VLAN, DHCP (server & client), DNS relay
|
||||||||||||||
|
Ethernet routing |
Multicast (PIM), IP redundancy (VRRP), static routes, NAT router, router, carriage coupling system (SRCC) |
||||||||||||||
|
Administration |
http, https, SNMP agent (V1, V2C, V3), WaveManager and WaveViewer administration software, save / restore configuration key (C-Key) | ||||||||||||||
|
I/O |
A 3-pin Waterproof M8 connector with :
|
||||||||||||||
|
LEDs Signaling |
Radio : activity – status | Ethernet : link10/100/1000 – activity | Power : on-off | C-Key : activity
|
||||||||||||||
|
Power supply |
+12VDC to +36VDC isolated (24V EN50155 nominal), redundant, M12 connector 4-pole A-coded & PoE 802,3af (15,4W)
|
||||||||||||||
|
Consumption |
IDLE mode : 2.7 W / Maximum average : 8.4 W / Recommended : 12 W
|
||||||||||||||
|
Dimensions & weight |
Compact enclosure L: 175 x l: 80 x h: 75 mm (without connectors), 850g
|
||||||||||||||
|
Standards |
|
||||||||||||||
|
Environment |
IP66
|
||||||||||||||
|
Warranty |
5 years |
* MESH point and fast roaming function to come.
| RuggedAir/2B | WiFi access point, client, repeater (WDS) and MESH point (802.11ac), 10/100/1000 M12 Ethernet interface. Shipped without cable or antenna |
| Included accessories : | |
| C-Key_M1 WL-PLT-1 |
Save / Restore configuration key 4-point fixing plate with ground lug |
| Additional accessories : | |
| WL-M12U/8X-ETH-2M WL-M12U/8X-ETH-5M WL-M12U/8X-ETH-10MWLg-M12U-PWR-2M WLg-M12U-PWR-5M WLg-M12U-PWR-10M WL-ANT-2458/2-ONM RGA1000-SET |
SPEEDCON Ethernet cable, 8pts X-coded M12 to RJ45, 10 Gbps 2 meters SPEEDCON Ethernet cable, 8pts X-coded M12 to RJ45, 10 Gbps 5 meters SPEEDCON Ethernet cable, 8pts X-coded M12 to RJ45, 10 Gbps 10 metersUltra-Lock waterproof 4-point M12 power supply cable, 2 meters Ultra-Lock waterproof 4-point M12 power supply cable, 5 meters Ultra-Lock waterproof 4-point M12 power supply cable, 10 meters Dual band (2.4 / 5 Ghz) 2 dBi omni-directional antenna Connecting set including : 1 x WL-M12U/8X-ETH-2M + 1 x WLg-M12U-PWR-2M + 3 x WL-ANT-2458/2-ONM |
| Version | Download | |
|---|---|---|
| WaveOS firmware upgrade package, release notes It is recommended to save your configuration to a PC prior to upgrade the firmware Following a technical issue, please contact ACKSYS support to download you firmware. |
4.28.1.1 vx241004 |
BINHASH |
| MIB (SNMP) |
3.24.0.1 vx241004 |
|
| WaveOS : Download the user guide |
– |
 |
| 4G cards firmware update package |
6.3 vx181025 |
|
| Version | Download | |
|---|---|---|
| WaveManager : Deployment & centralized management software for WaveOS-based WiFi products, Windows and Linux platforms |
3.6.4.1 vx241105 |
|
| Supplementary catalog (graphic resources): download required |
1.6.0.1 vx240131 |
|
| Download the user guide |
– |
|
