Isolated RS232/RS422/RS485 USB serial Hub
NOTE : USBPort has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.
This new range of serial to USB solution (USBPort/x) offers performance, simplicity of installation, security, robustness and high reliability at affordable prices.
USBPort/x is proposed in two models : 2 and 4 isolated port with 3 in 1 serial interface RS232, RS422 & RS485 in order to cover all technical requirements of industrial environments.
USBPort/x installation is quite simple as the product is instantly plug & play, it doesn’t require any IRQ, DMA or I/O port resources.
Installed serial ports are considered by Windows 2000, 2003, XP, VISTA, SEVEN & Linux operating systems as computer’s standard COM ports.
USBPort supports up to 3 Mbps over the serial link. A decimal divider makes it possible the program non-standard highly accurate baud-rates.
|
Interfaces |
2 or 4 RS232 / RS422 / RS485 asynchronous serial ports for USB 2.0
|
||
|
RS signals |
RS232 mode : TxD, RxD, RTS, CTS, DCD, DTR, RI & GND
|
||
|
Format |
Asynchronous 5, 6, 7 or 8 bits per character 1, 11/2, 2 stop bits Even, odd, mark, space or no parity
|
||
|
Data rate |
From 300 Kbps to 3 Mbps on each port
|
||
|
FIFOS |
TX: 128 bytes, RX: 384 bytes on each port
|
||
|
Hand-shake |
Hardware hand-shake (RTS/CTS) and/or software hand-shake (XON/XOFF) with automatic line direction control in the RS485 mode.
|
||
|
RS connectors |
5-point screw-in terminal for each RS422/RS485 port, male SUB D9 connector for RS232
|
||
|
Protection |
15KV ESD protection with HF signal filtering, CE standards
|
||
|
Isolation |
1500Vrms optic isolation on RS422/RS485 serial ports
|
||
|
Signaling |
2 LEDs per port to monitor TxD & RxD signals activity, one LED for power supply
|
||
|
Power supply |
USB bus powered of from an external power source (+9 to +36VDC) on jack or Phoenix connector. USBPort/x enables to chain other USB devices and thus power other USB equipments from the product.
|
||
|
Operating systems
|
Windows 2000, 2003, XP, VISTA, SEVEN and Linux (please consult us for other OS) |
||
|
Consumption |
2.5W for the 2-port version, 3.5W for the 4-port version
|
||
|
Configuring |
“Plug & Play” equipment, quick & easy Windows installation, RS232 / RS422 / RS485 mode, polarization and line termination are switches configurable
|
||
|
EMC |
NF EN 55022 residential emission, NF EN 61000-6-2 industrial immunity
|
||
|
Environment |
Operating temperature from -40°C to +70°C, storage -40°C to +80°C, 0 to 95% relative humidity without condensation
|
||
|
Installation |
Metal case for panel mounting, 35 mm Din Rail mounting accessories available optionally
|
||
|
Dimensions |
USBPort/2: 168 mm (L) x 112 mm (W) x 26 mm (H) USBPort/4: 168 mm (L) x 112 mm (W) x 42 mm (H)
|
||
|
Weight |
445 g for the 2-port version, 610 g for the 4-port version
|
NOTE : USBPort has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.
|

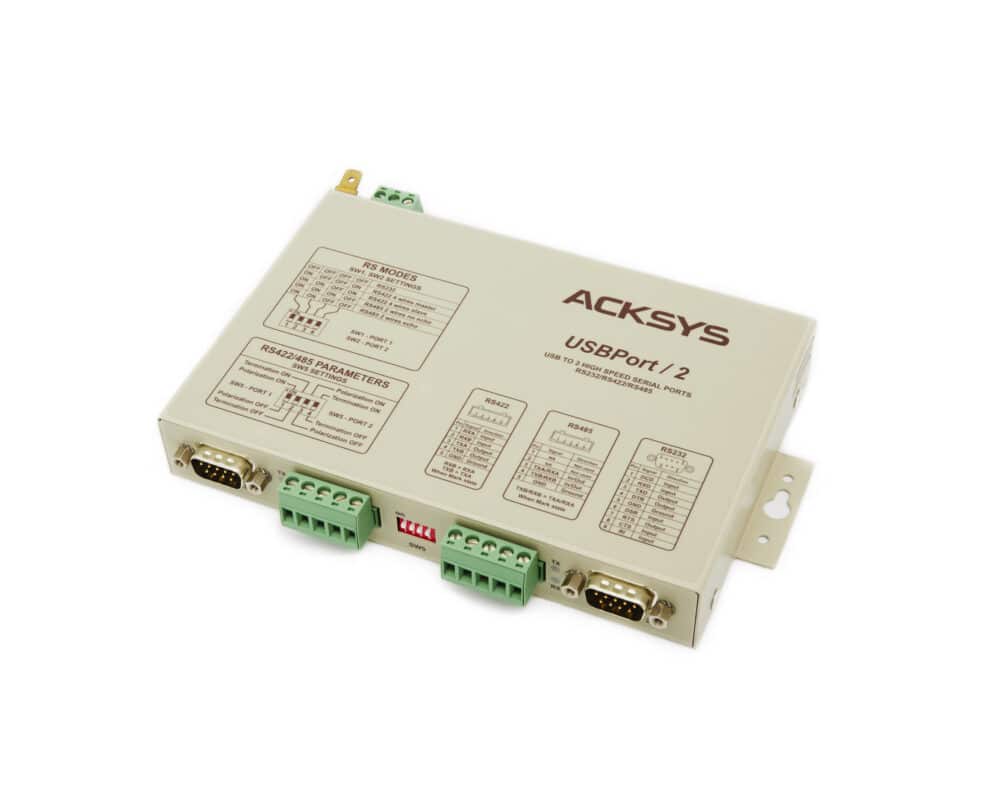

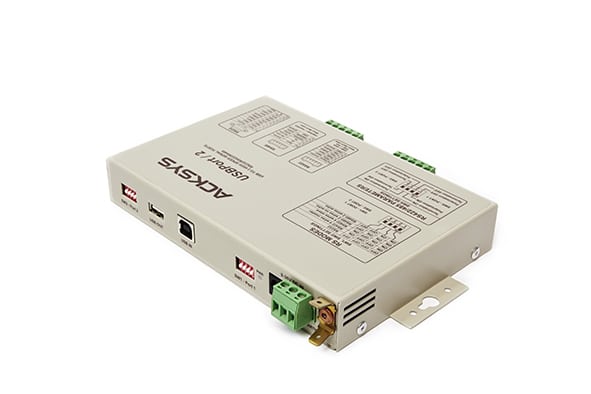

USBPort/2 |
Isolated 2-port RS232/RS422/RS485 serial Hub, power from USB bus or from an external power source +9VDC to +36VDC, 2 meter USB type A/B cable provided
|
||
|

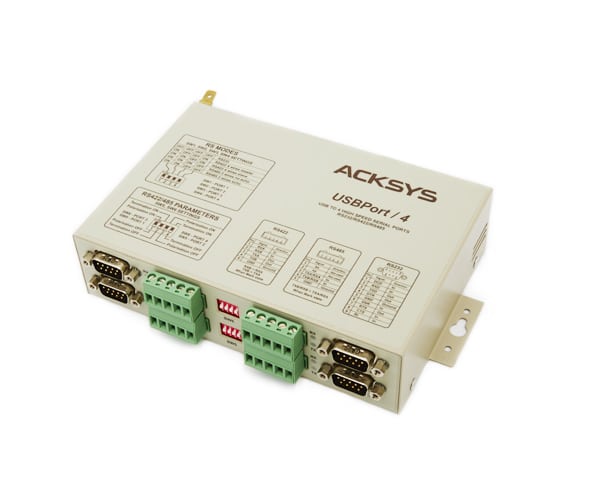

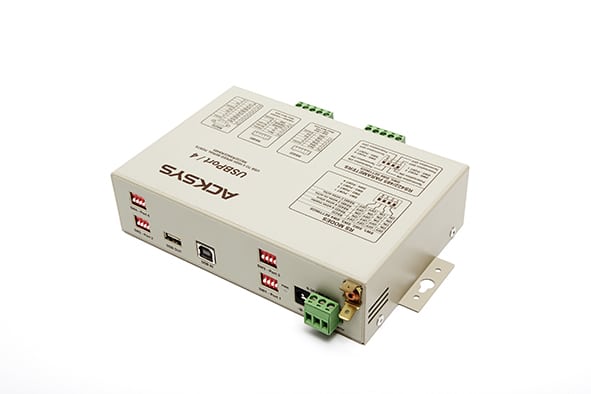

USBPort/4 |
Isolated 4-port RS232/RS422/RS485 serial Hub, power from USB bus or from an external power source +9VDC to +36VDC, 2 meter USB type A/B cable and PWS-12 supplied
|
||
|
Accessories :
|
|||
|
PWS12-UNI |
Optional external power adapter 220VAC ↔ 12VDC (12W) for USBPort/2 (required when chaining several devices on the same USB port or when the USB HUB delivers less than 500 mA)
|
