4-port HDLC communication board
NOTE : WAN-HDLC range has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.
Designed for test applications or to be incorporated into a final equipment, our MCXUNI/570 boards (also available in Compact PCI) increase your system performance by discharging your computer from the asynchronous, asynchronous synchronized (isochronous) and synchronous (HDLC envelope frames, HDLC ABM/LAPB, HDLC NRM/SDLC, HDLC asynchronous, BSC, MONOSYNC, BISYNC or any type of protocol developed on request…) serial links.
The provided standard driver allows you to use the serial ports of the board from the standard API of the OS (ex. COM port interface on Windows), giving it “implementation simplicity and flexibility of use”. Protocols management deported in the board is transparent to the user.
Built to last, MCXUNI/570 boards are designed to be used in the most critical environments:
|
Number of channels |
4 channels synchronous or asynchronous
|
||
|
Baud rate |
Asynchronous : up to 521 KBds Synchronous : up to 4 MBds (contact us for higher baud rates) |
||
|
Format |
Universal PCI (32 bits 33MHz 3.3V/5V Ver 2.3, 2.2, 2.1) Compact PCI 6U board
|
||
|
Protocols |
HDLC envelope frames, HDLC asynchronous (ISO/IEC 13239), HDLC ABM/LAPB, HDLC NRM/SDLC, X25 Adaptation of the existing protocol from a specification possible
|
||
|
Line interface |
V35, RS232, RS422, RS485, V24, X21
Soft configurable channel by channel
|
||
|
Available signals |
V35 : A, B, C, D, E, F, H, J, P & S, R & T, U & W, V & X, Y & AA Others (depending on interface) : TxD, RxD, TxCin, TxCout, RxC, RTS, CTS, DSR, DTR, DCD, RI, Gnd, PGnd
|
||
|
Connectors |
DB62 in rear I/O (in front I/O for CPCI models)

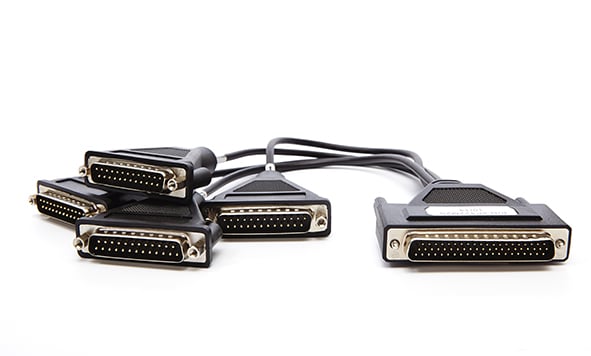

Octopus cable 4 x SuBD25 (included in the standard package)
|
||
|
Peripheral drivers |
Windows, Linux
|
||
|
Dimensions |
Dimensions 215 mm (L) x 115 mm (H) for universal PCI model
Dimensions : 6U for Compact PCI model
|
||
|
Operating conditions |
Temperature from -5°C to +65°C, storage -25°C to +80°C, relative humidity from 0 to 95% RH without condensation
|
NOTE : WAN-HDLC range has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.
|

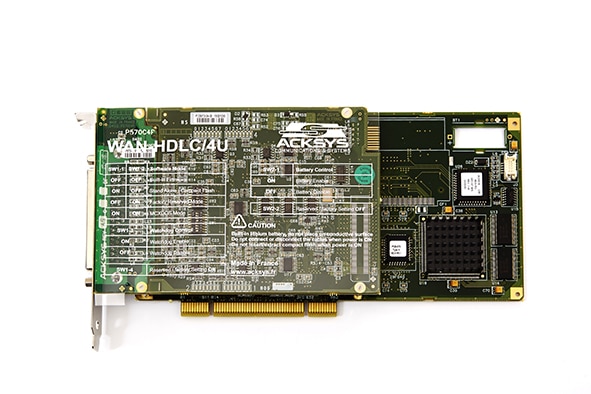

WAN-HDLC/4U
WAN-HDLC/4C |
Universal PCI board, 4 channels HDLC synchronous. Delivered with octopus cable.

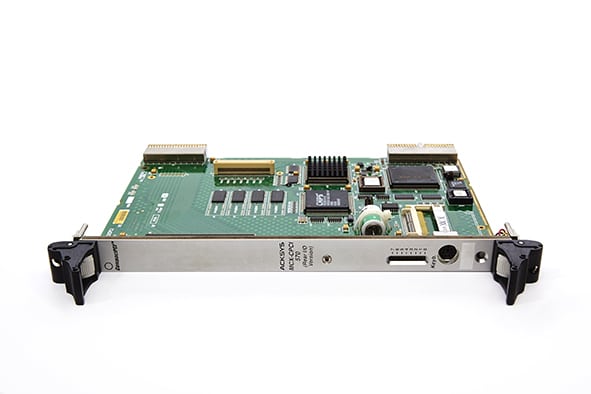

Compact PCI 6U Front I/O board, 4 channels HDLC synchronous. Delivered with octopus cable. (see reference MCXCPCI/570-4-R for Rear I/O model)
|
