WiFi access point, Ethernet bridge & repeater (WDS)
NOTE : WLg-ABOARD has reached the end of its life cycle (to know more about its different deadlines click here).
The recommended replacement product is : RuggedAir100. Your sales representative is at your disposal for any questions.

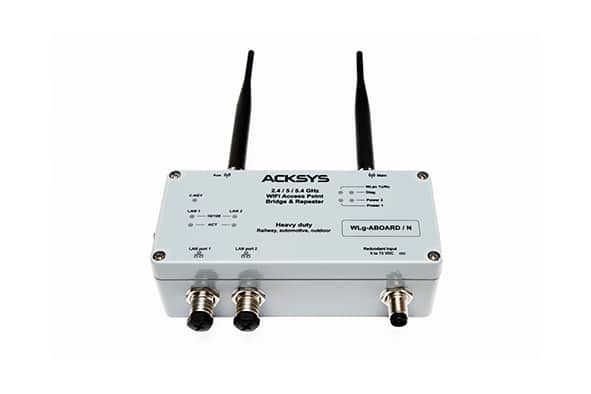

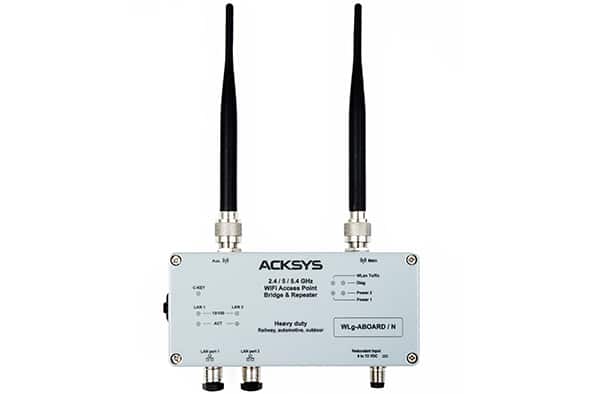

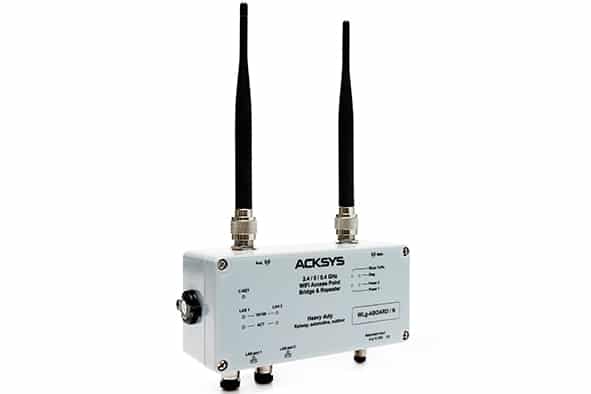

WLg-ABOARD/N is a rugged equipment designed for applications in railways (CBTC architectures), on-road, marine transportation, depots, warehouses, agriculture, manufacturing floors, docks, distribution centers, shipyards and lumberyards … it can be mounted in trucks, trains, tramways, freighter ships, forklifts, trailers, tractors or cranes, for material handling, real-time information transmission, and inventory management.
It fulfills the most severe requirements in terms of operating environment: from -25°C to +70°C (extended -40°C to +80°C), shockproof and vibration proof, IP66 seal rating for protection against dust and water projections.
WLg-ABOARD/N is certified for railway applications (EN 50155 [IEC 60571] / EN 50121-3-2 / EN 50121-4); it is E-marked (CE standard for electronic equipments installed aboard vehicle), and can thus be installed in full safety aboard of all on-road equipments.
|
|
2-port Ethernet 10/100 auto-sensing, waterproof Ultra-Lock® M12 connectors (D-coding), plug & play mode & auto MDI/MDIX cross-over
|
||
|
WiFi network
|
Compliant to the IEEE 802.11a/b/g/h 2.4 / 5 / 5.4 GHz standards, IEEE 802.11d support, dynamic Frequency Selection (DFS), “ClearVoice” band, transmission Power Control (TPC).
|
||
|
Data rate
|
Up to 108 Mbps (Super AG mode) |
||
|
Channels |
2.4 GHz (802.11b/g): 14 channels / 5 GHz (801.11a/h): 24 channels
|
||
|
Output power
|
Transmitter +20 dBm (TPC), +26 dBm with the [H4] option
|
||
|
Sensitivity
|
Receiver -92 dBm for IEEE 802.11 a/g and -95 dBm for IEEE 802.11b
|
||
|
Antennas |
Two 2dBi 2.4 / 5 GHz antenna, N-type connectors, optional lightning surge protection
|
||
|
Modulation
|
OFDM: BPSK, QPSK, 16QAM, 64QAM and DSSS: DBPSK, DQPSK, CCK |
||
|
Security |
64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (RADIUS authenticator & supplicant), MAC addresses filtering, SSID broadcast control
|
||
|
Modes
|
Access point to build a WiFi network infrastructure, Bridge to connect any Ethernet equipments to this network and MODBUS/TCP wireless gateway, repeater (WDS), infrastructure, AD-HOC, bridge router & fast roaming (less than 50 ms) modes are supported
|
||
|
Administration
|
Thanks to its built-in WEB interface, the setup of the device is achieved using any web browser installed on your computer (Internet Explorer, Netscape, Mozilla …), SNMP agent, ACKSYS NDM
|
||
|
Operating systems
|
Windows, Linux, UNIX as well as any operating system supporting TCP/IP
|
||
|
Alarms |
Relay output warning: power failure, WLAN connection failure, Watchdog or user defined (SNMP)
|
||
|
Signaling |
LEDs signaling for LAN, WLAN network activity, 10/100 mode, MAIN & AUX power supply, C-Key
|
||
|
Power supply |
9-72VDC, insulated 9-36VDC or 36-140VDC, dual input (M12 connector) or POE (IEEE 802.3af)
|
||
|
Consumption |
8W typical power consumption, 10W with the 400mW radio
|
||
|
Dimensions & weight |

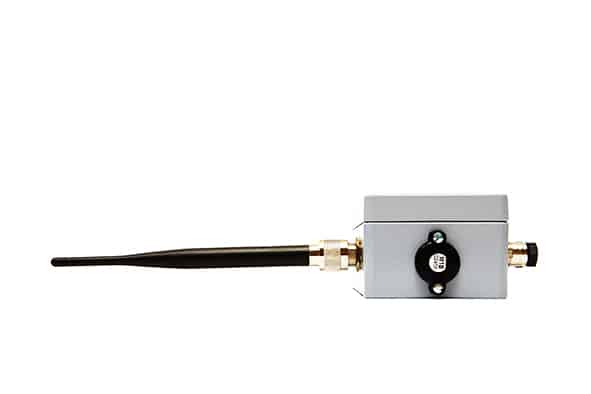

Shockproof rugged aluminum enclosure, (L: 80 x l: 175 x h: 57 mm), 820 g with antennas
|
||
|
Standards |
MIL-STD-810F method 514.5 & 516.5 (shocks & vibrations) EN 301489-17 & EN 61000-6-2 (CEM), IP66 seal rating, E-marked (2004/104), EN 50155 (IEC 60571) / EN 50121-3-2, EN 50121-4 (railways)
|
||
|
Environment |
Operating temperature : -25°C to +70°C, extended -40°C to +80°C with [H4] option (HR 0-99%), storage : -40°C to +100°C
|
NOTE : WLg-ABOARD has reached the end of its life cycle (to know more about its different deadlines click here).
The recommended replacement product is : RuggedAir100. Your sales representative is at your disposal for any questions.
|
WLg-ABOARD/N [H4] |
WiFi Access Point, 2-port Ethernet Bridge & WDS Repeater (a/b/g/h) for automotive applications, dual DC power input from +9VDC to +72VDC, shipped with 2 dual band 2 dBi omni-directional (2.4 / 5 Ghz), one set of 2 meters cables (M12 to RJ45 and M12 to stripped cables)
|
||
|
WLg-ABOARD/NP [H4]
|
Same as /N with POE IEEE 802.3af (without power cable)
|
||
|
WLg-ABOARD/NI [H4]
|
Same as /N with a dual DC insulated power input from +9VDC to +36VDC and alarm contact (relay)
|
||
|
WLg-ABOARD/NPI [H4]
|
Same as /N with a dual DC insulated power input from +36VDC to +140VDC, POE IEEE 802.3af, alarm contact (relay)
|
||
|
ACCESSORIES |
|||
|
C-Key_M1 |
Save / Restore configuration key for the WLg-ABOARD
|
||
|
[H4] option |
H4 means high power version (400mW) and extended temperature range (-40°C to +75°C)
|
||
|
WLg-ANT-LSP-N
|
Lightning Surge Protector 50 Ohms N-Type antenna 5 KA (0-6 GHz)
|
||
|
WL-PLT-1 |
4-point fixing plate with ground lug
|
||
|
|
M12 CABLE REFERENCES
|
||
|
|
Waterproof M12 Ethernet cables
|
Waterproof M12 Power supply cables
|
||
|
WLg-ABOARD/N V3 & above
|
WLg-M12U-ETH-xM (ultra-lock, 4-pole)
|
WLg-M12U-PWR-xM (ultra-lock, 4-pole)
|
||
|
WLg-ABOARD/NP V3 & above
|
WLg-M12U/8-ETH-xM (ultra-lock, 8-pole)
|
WLg-M12U-PWR-xM (ultra-lock, 4-pole)
|
||
|
WLg-ABOARD/NI
|
WLg-M12U-ETH-xM (ultra-lock, 4-pole)
|
WLg-M12/6-PWR-xM (6-pole)
|
||
|
WLg-ABOARD/NPI
|
WLg-M12U/8-ETH-xM (ultra-lock, 8-pole)
|
WLg-M12/6-PWR-xM (6-pole)
|
||
