WiFi Access Point, Ethernet Bridge & Repeater (WDS)
NOTE : WLg-ACCESS-ATEX has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.

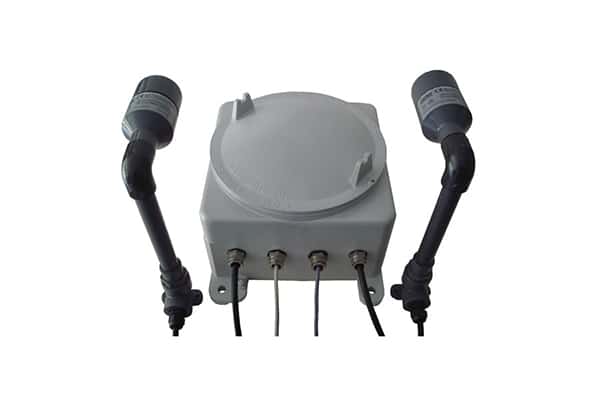

WLg-ACCESS-ATEX is designed for industrial applications in explosive environment like chemical industries, refineries, electric stations, very dusty environments and also those where sparks and electric arcs occur…
Its network interface enables any industrial equipment (PC, PLC, I/O, acquisition systems, displays …) to communicate through the wireless Ethernet network.
Thanks to its built-in WEB interface, the setup of the device is achieved using the web browser installed on your computer (Internet Explorer, Netscape, Mozilla …).
WLg-ACCESS-ATEX doesn’t require any additional software to be installed on your computer (no peripheral driver needed).
WLg-ACCESS-ATEX works with any kind of industrial protocols carried by Ethernet TCP/IP.
|
Ethernet link |
2-port Ethernet 10/100 auto-sensing, plug & play mode & auto MDI/MDIX cross-over
|
||
|
WiFi network |
Compliant to the IEEE 802.11 b/g 2.4 GHz or a/h 5 GHz standards, multi-country Roaming support (IEEE 802.11d); Dynamic Frequency Selection (DFS) support provides flexible selection of best frequency to allow mobility among existing networks; “ClearVoice” band provides non-overlapping channels for fast data transmission; Transmission Power Control (TPC)
|
||
|
Connections |
Screw-in terminal block (Ethernet cables and power) inside enclosure, output through stuffing boxes
|
||
|
Data rate
|
Up to 108 Mbps (Super AG mode) |
||
|
Channels |
13 channels
|
||
|
Output power
|
Transmitter +20 dBm (TPC), +26 dBm with the WLg-RF400MW option |
||
|
Sensitivity |
Receiver -92 dBm for IEEE 802.11g and -95 dBm for IEEE 802.11b
|
||
|
Antennas |
2 external antennas provided with 3m of low loss cable and wall mounting support : – Omnidirectionals, vertical polarization, dual-bande (2.4 GHz/5 GHz) – Gain : 5 dBi/2.4 GHz, 6 dBi/5GHz – Material : PVC-U (radome), stainless steel (support)
|
||
|
Modulation
|
OFDM : BPSK, QPSK, 16QAM, 64QAM et DSSS : DBPSK, DQPSK, CCK |
||
|
Security |
64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (RADIUS authenticator & supplicant), MAC addresses filtering, SSID broadcast control
|
||
|
Modes |
Access point to build a WiFi network infrastructure, Bridge to connect any Ethernet equipments to this network and MODBUS/TCP wireless gateway, repeater (WDS), infrastructure, AD-HOC, bridge router & rapid roaming modes are supported
|
||
|
Administration |
Thanks to its built-in WEB interface, the setup of the device is achieved using any web browser installed on your computer (Internet Explorer, Netscape, Mozilla …), SNMP agent, ACKSYS NDM
|
||
|
Systèmes d’exploitation
|
Windows, Linux, UNIX as well as any operating system supporting TCP/IP
|
||
|
Signaling |
LEDs signaling for LAN, WLAN network activity, 10/100 mode (inside enclosure)
|
||
|
Power supply |
110/220VAC, 9 to 72 VDC or PoE (Depending on the model)
|
||
|
Consumption |
7W typical power consumption
|
||
|
Dimensions & weight |
Enclosure weight: 12 Kg, antenna weight: 286g +/- 10g
|
||
|
Standards |
Enclosure protection: EX II 2GD EEx d IIC, IP 66, Zone 1 & 21
|
||
|
Environment |
Operating temperature: -25°C to +55°C (HR 0-99%), storage: -40°C to +80°C
|
NOTE : WLg-ACCESS-ATEX has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.
|
WLg-ACCESS-ATEX [H4] |
ATEX Zone 1 & 21, WiFi Access Point, 2-port Ethernet Bridge & WDS Repeater (a/b/g), AC power supply 110/220VAC, provided with 2 external Omni directional antennas (2.4 GHz 5dBi / 5 GHz 6 dBi), ground plane type for wall mounting and 3m of low loss cable
|
||
|
WLg-ACCESS-ATEX-DC [H4] |
ATEX Zone 1 & 21, WiFi Access Point, 2-port Ethernet Bridge & WDS Repeater (a/b/g), DC power supply 9 to 72VDC or PoE IEEE 802.3af, provided with 2 external Omni directional antennas (2.4 GHz 5dBi / 5 GHz 6 dBi), ground plane type for wall mounting and 3m of low loss cable
|
||
|
[H4] means high power version (400mW) and extended temperature range (-40°C to +80°C)
|
