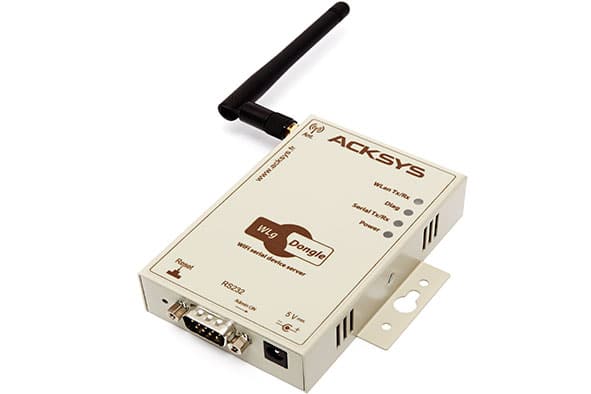

Compact serial RS232 server to WiFi 802.11 a/b/g (2.4 / 5 GHz)
NOTE : WLg-DONGLE has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.
WLg-DONGLE gives access to any serial equipment from Windows, UNIX & Linux computers connected to your WiFi Ethernet TCP/IP network, make it possible to communicate between two distant serial equipments through the network, or directly with a peer to peer connection (Ad-Hoc mode).
The support of the Telnet (RFC 2217) extension associated to a COM ports re-director enables distant serial equipments connected to the WLg-DONGLE to be directly used by Windows & Linux existing applications using standard COM ports.
The WLg-DONGLE device is also designed to work as a wireless bridge between MODBUS ASCII/RTU protocols and the radio network, this feature allows connecting any serial MODBUS equipment to the radio.
Integrators and manufacturers (point of sales, medical instrumentation, industrial automation, security systems, video surveillance, automotive, building automation …) can right now rely on this new technology to build safety wireless network applications while freeing themselves from wiring constraints.
|
Serial port
|
Full RS232 (SUB D9 connector) serial interface, 250 Kbps |
||
|
WiFi network
|
Compliant to the IEEE 802.11a/b/g/h 2.4 / 5 GHz standards, multi-country Roaming support (IEEE 802.11d); Dynamic Frequency Selection (DFS) support provides flexible selection of best frequency to allow mobility among all existing IEEE 802.11a/b/g/h networks; “ClearVoice” band provides non-overlapping channels for fast-speed data transmission; Transmission Power Control (TPC) offers flexibility to adjust RF output power, based on the ATHEROS’s AR5414 (AR5006XS) chip set, single channel rapid roaming (< 50 mS)
|
||
|
Radio data rate
|
Up to 108 Mbps (Super AG mode) |
||
|
Channels
|
13 channels (b/g modes), 8 channels (a mode), 11 channels (h mode) |
||
|
Output power
|
Transmitter +20 dBm (TPC)
|
||
|
Sensitivity
|
Receiver -92 dBm for IEEE 802.11 a/g and -95 dBm for IEEE 802.11b
|
||
|
Antenna
|
One 2 dBi bi-band external antenna, RP-SMA connector |
||
|
Modulation
|
OFDM: BPSK, QPSK, 16QAM, 64QAM DSSS: DBPSK, DQPSK, CCK
|
||
|
Security
|
64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (RADIUS)
|
||
|
Modes
|
Support for TCP Client/Server, DHCP Client, TELNET RFC2217 extension, Telnet Server, COM port re-director (VIP), multipoint or point to point virtual link over UDP modes and MODBUS/TCP Client/Server, MODBUS/RTU & MODBUS/ASCII protocols, direct communication (ad hoc) or from access point
|
||
|
Administration
|
Thanks to its built-in WEB interface, the setup of the device is achieved using any web browser installed on your computer (Internet Explorer, Netscape, Mozilla …), SNMP agent, ACKSYS NDM, TELNET from the serial link
|
||
|
Operating systems
|
Windows, Linux, UNIX as well as any operating system supporting TCP/IP
|
||
|
Signaling
|
TxD / RxD serial and WLAN radio activity on LEDs
|
||
|
Power supply
|
+5VDC power source on jack connector
|
||
|
Consumption
|
3.5 Watts typical, 5 Watts maximum
|
||
|
Dimensions
|
Compact metallic enclosure (L: 103 x W: 67 x H: 24 mm)
|
||
|
Environment
|
Operating temperature: -0°C to +70°C, storage: -65 to +100°C
|
NOTE : WLg-DONGLE has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.
|
WLg-DONGLE
|
Single channel serial server and serial MODBUS to MODBUS/TCP data gateway with RS232 interface (SUB D9) to the wireless WiFi Network (IEEE 802.11 a/b/g/h), with COM port redirection software, external antenna and power supply
|
