WiFi access point, 2-port Ethernet bridge & WDS repeater
NOTE : WLg-IDA/N has reached the end of its life cycle (to know more about its different deadlines click here).
The recommended replacement product is : AirBox. Your sales representative is at your disposal for any questions.

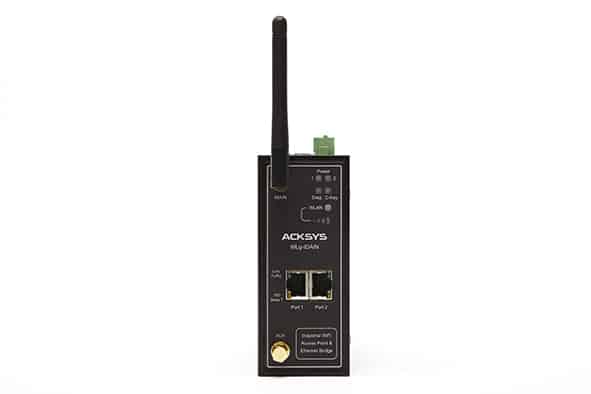

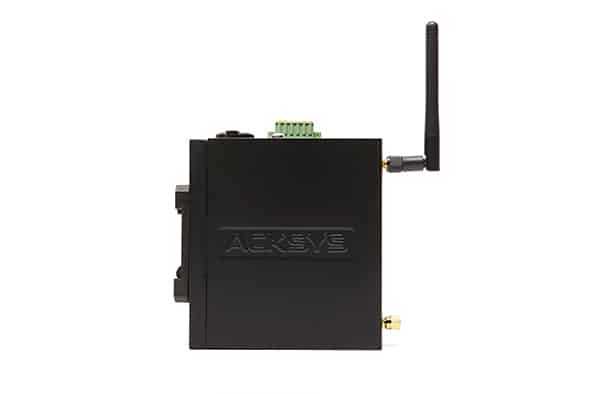

WLg-IDA/N features a WLAN interface coupled to a 2-port Ethernet 10/100 designed for harsh industrial environments and automotive applications. The unit is housed in a compact enclosure ready to be DIN rail or panel mounted.
The device offers many switch technology advancements, including auto MDI/MDIX crossover for easy plug and play application.
The configuration of the device is achieved using the web browser installed on your computer; it also offers SNMP administration / configuration and an optional C-Key which allows quick and easy on-site replacement of the WLg-IDA/N unit, eliminating the need to reconfigure the replacement part or to use any other equipment.
WLg-IDA/N fulfils the most severe requirements in terms of operating environment: operating temperature from -20°C to +70°C, shockproof and vibration proof according to MIL-STD-810F standard, IP30 seal rating.
|
Ethernet link
|
2-port Ethernet 10/100 auto-sensing; RJ45 connectors; plug & play mode & auto MDI/MDIX cross-over |
||
|
WiFi network
|
Compliant to the IEEE 802.11a/b/g/h 2.4 / 5 / 5.4 GHz standards, multi-country Roaming support (IEEE 802.11d); Dynamic Frequency Selection (DFS) support provides flexible selection of best frequency to allow mobility among all existing IEEE 802.11a/b/g/h networks; “ClearVoice” band provides non-overlapping channels for fast-speed data transmission; Transmission Power Control (TPC) offers flexibility to adjust RF output power, based on the ATHEROS AR5414 (AR5006XS) chip set
|
||
|
Radio data rate
|
Up to 108 Mbps (Super AG mode), TCP user data rate up to 44 Mbps |
||
|
Channels
|
13 channels (b/g modes), 8 channels (a mode), 11 channels (h mode)
|
||
|
Output power
|
Transmitter +20 dBm (Optional 26 dBm)
|
||
|
Sensitivity
|
Receiver -92 dBm for IEEE 802.11 a/g and -95 dBm for IEEE 802.11b
|
||
|
Antenna
|
One 2dBi 2.4 / 5 GHz antenna (RP-SMA connector) + one RP-SMA connector for an additional antenna (diversity mode)
|
||
|
Modulation
|
OFDM : BPSK, QPSK, 16QAM, 64QAM et DSSS : DBPSK, DQPSK, CCK
|
||
|
Security
|
64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (RADIUS supplicant & authenticator), MAC addresses filtering, SSID broadcast control
|
||
|
Modes
|
Access point to build a WiFi network infrastructure, Bridge to connect any Ethernet equipments to this network and MODBUS/TCP wireless gateway, repeater (WDS), infrastructure, AD-HOC, bridge router & rapid roaming (less than 50 ms) modes are supported
|
||
|
Administration
|
Built-in WEB interface; SNMP V2c agent; ACKSYS NDM (Networking Device Manager).
|
||
|
Operating systems
|
Windows, Linux, UNIX as well as any operating system supporting TCP/IP
|
||
|
Protocols
|
Ethernet TCP/IP & UDP, MODBUS/TCP, Ethernet/IP, PROFINET …
|
||
|
Signaling
|
Led display for power supplies, LAN on each port & WLAN activity, radio receive level
|
||
|
Alarms
|
Relay output warning: power failure, LAN or WLAN connection failure, Watchdog.
|
||
|
Power supply
|

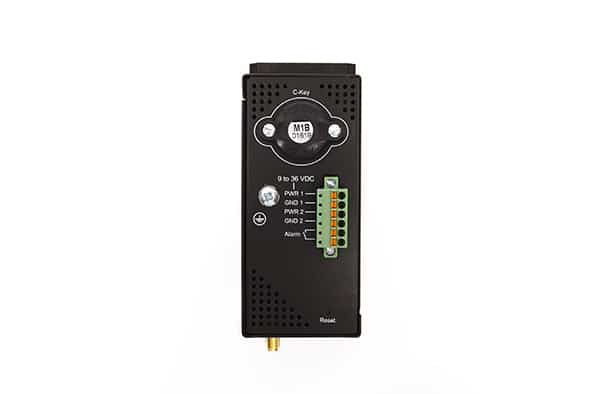

PoE IEEE 802.3af or +9VDC to +36VDC dual redundant power supply input (removable clamp cage terminal)
|
||
|
Consumption
|
4.5 Watts typical
|
||
|
Dimensions & weight
|
Shock & vibration proof metal enclosure (L: 110 x W: 50 x H: 120 mm), 570 g
|
||
|
Standards
|
MIL-STD-810F, 514.5 & 516.5 methods (shocks & vibrations) EN 301489-17 & EN 61000-6-2 (EMC)
|
||
|
Environment
|
Operating temperature: -20°C to +70°C (-4°F to 158°F), storage: -65°C to +100°C (-85°F to 212°F),
|
NOTE : WLg-IDA/N has reached the end of its life cycle (to know more about its different deadlines click here).
The recommended replacement product is : AirBox. Your sales representative is at your disposal for any questions.
|
WLg-IDA/N
|
WiFi Access Point, 2-port Ethernet Bridge & WDS Repeater (a/b/g/h), PoE IEEE 802.3af or +9VDC to +36VDC dual redundant power supply input, shipped with 1 dual band 2 dBi omnidirectional (2.4 / 5 GHz) antenna and 1 meter of Ethernet RJ45 cable
|
||
|
C-Key_M1
|
Save / Restore configuration key for the WLg-IDA/N |
||
|
WLg-RF400MW
|
High power radio option (26 dBm, 400 mW) |
||
|
WLg-FIX-PLQ
|
Panel fixing metallic plate |
||
|
CAB-RJ45-1M
|
1 meter Ethernet RJ45 cable, straight |
