3-in-1 combo: Rugged 8-port Ethernet switch, POE injector, WiFi AP / BRIDGE / REPEATER
WiFi IEEE 802.11 a/b/g/h & super AG, up to 108 Mbps
Security : WEP, WPA-PSK, WPA2-PSK & IEEE 802.1x RADIUS
Web based configuration, SNMP administration
8-port Ethernet 10/100 Base TX with PoE 802.3af injector
Dual DC power supply input (+9VDC to +75VDC)

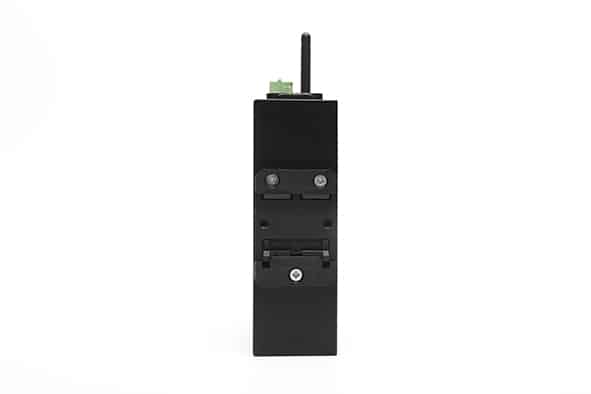

IP30 metal enclosure, DIN rail or panel mounting
NOTE : WLg-SWITCH has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.

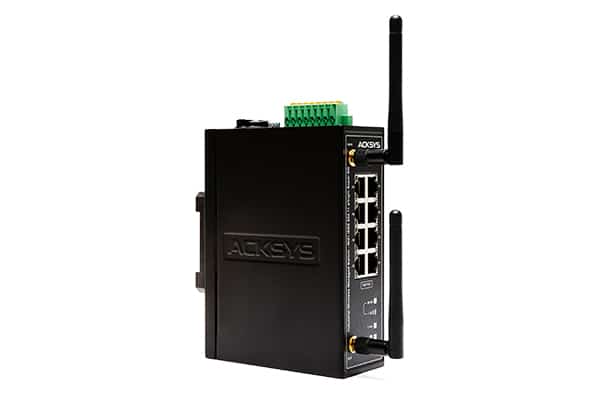

WLg-SWITCH is a 3-in-1 combo solution: 8-port managed Ethernet switch, 2.4 / 5 GHz WiFi ACCESS POINT / BRIDGE / REPEATER and 120W power injector (PoE PSE) designed for harsh industrial environments and automotive applications. The unit is housed in a compact enclosure ready to be DIN rail or panel mounted.
Both Switch and power injector are manageable that make it possible to offer advanced configuration.
WLg-SWITCH can be managed using a web browser or SNMP; the “C-Key” allows for quick and easy on-site replacement of the WLg-SWITCH unit, eliminating the need to reconfigure the replacement part or to use any other equipment, giving it a high availability.
WLg-SWITCH fulfills the most severe requirements in terms of operating environment: operating temperature from -25°C to +70°C (-4°F to 158°F), shock and vibration proof according to MIL-STD-810F standard, IP 30 seal rating.
|
|
8-port 10/100 Base TX Fast Ethernet interface, RJ45 connector, auto MDI/MDIX crossover, IEEE 802.3x full-duplex and half-duplex auto-adaptive, wire-speed reception and transmission, high performance lookup engine, automatic address learning and aging, 120W PoE PSE feature according to IEEE 802.3.af |
||
|
WiFi network
|
Compliant to the IEEE 802.11a/b/g/h 2.4 / 5 / 5.4 GHz standards, multi-country Roaming support (IEEE 802.11d); Dynamic Frequency Selection (DFS) support provides flexible selection of best frequency to allow mobility among all existing IEEE 802.11a/b/g/h networks; “ClearVoice” band provides non-overlapping channels for fast-speed data transmission; Transmission Power Control (TPC) offers flexibility to adjust RF output power, based on the ATHEROS AR5414 (AR5006XS) chip set
|
||
|
Radio data rate
|
Up to 108 Mbps (Super AG mode), TCP user data rate up to 44 Mbps
|
||
|
Channels
|
13 channels (b/g modes), 8 channels (a mode), 11 channels (h mode)
|
||
|
Output power
|
Transmitter +20 dBm (Optional 26 dBm) |
||
|
Sensitivity
|
Receiver -92 dBm for IEEE 802.11 a/g and -95 dBm for IEEE 802.11b |
||
|
Antennas
|
Two 2dBi 2.4 / 5 GHz antenna for diversity mode |
||
|
Modulation
|
OFDM: BPSK, QPSK, 16QAM, 64QAM DSSS: DBPSK, DQPSK, CCK
|
||
|
Security
|
64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (RADIUS supplicant & authenticator), MAC addresses filtering, SSID broadcast control
|
||
|
Modes
|
Access point to build a WiFi network infrastructure, Bridge, Bridge router, fast roaming, Infrastructure & AD-HOC, BRIDGE ROUTER, rapid roaming (less than 50 mS) modes are supported
|
||
|
Administration
|
Built-in WEB interface, SNMP V2c agent, ACKSYS NDM (Networking Device Manager).
|
||
|
Operating systems |
Windows, Linux, UNIX as well as any operating system supporting TCP/IP
|
||
|
Protocols
|
Ethernet TCP/IP & UDP, MODBUS/TCP, Ethernet/IP, PROFINET …
|
||
|
Signaling
|

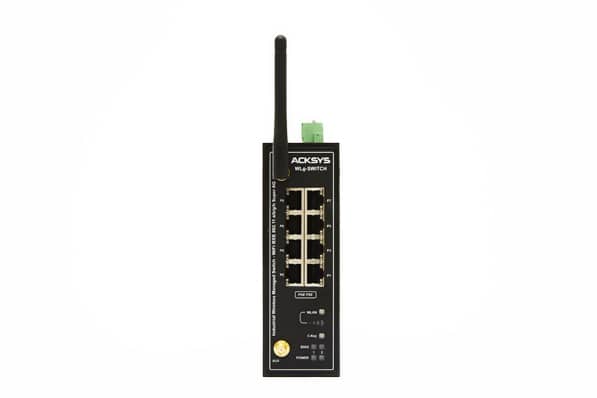

Led display for power supplies, LAN on each port & WLAN activity, radio receive level
|
||
|
Alarms
|
Relay output warning: power failure, LAN or WLAN connection failure, Watchdog.
|
||
|
Power supply
|

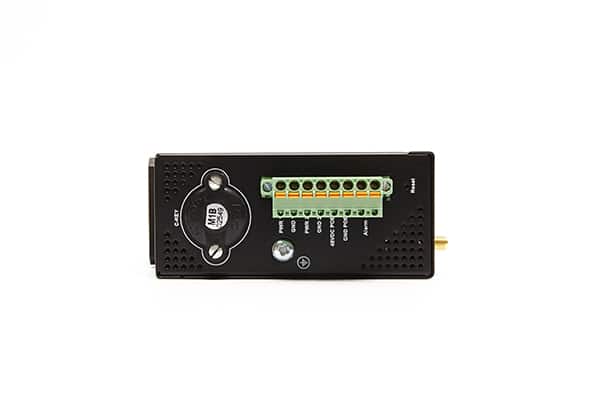

Dual input, +9 to +75VDC, removable clamp cage terminal
|
||
|
Consumption
|
10 Watts maximum (PoE injector power consumption not included)
|
||
|
Dimensions & weight
|
L: 110 mm x W: 50 mm x H: 151 mm (4.33 x 1.97 x 5.94 inch), weight 650g (22.9 oz)
|
||
|
Environment
|
Operating temperature: -25°C to +70°C (-4°F to 158°F), storage: -65°C to +100°C (-85°F to 212°F),
|
NOTE : WLg-SWITCH has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.
|
WLg-SWITCH
|
3-in-1 combo: 8-Port Ethernet switch, WiFi Access Point / Ethernet Bridge / Repeater (IEEE 802.11a/b/g/h & super AG, 2.4 / 5 GHz operation), 8-port power injector (130W), shipped with two 2dBi 2.4 / 5 GHz antennas
|
||
|
C-Key_M1
|
Save / Restore configuration key for the WLg-Switch |
||
|
WLg-RF400MW
|
High power radio option (26 dBm, 400 mW) |
||
|
WLg-FIX-PLQ
|
Panel fixing metallic plate |
||
|
CAB-RJ45-1M
|
1 meter Ethernet RJ45 cable, straight |
