WiFi access point, Ethernet bridge & repeater (WDS)
NOTE : WLg-xROAD/N has reached the end of its life cycle (to know more about its different deadlines click here).
The recommended replacement product is : AirXroad. Your sales representative is at your disposal for any questions.
WLg-xROAD/N is a rugged equipment designed for applications in road transportation, depots, warehouses, agriculture, manufacturing floors, docks, distribution centers, shipyards and lumberyards … it can be mounted in trucks, city buses, forklifts, trailers, tractors or cranes, for material handling, real-time information transmission, and inventory management.
It fulfills the most severe requirements in terms of operating environment: from -25°C to +70°C, shock and vibration proof, protection against dust and water projections (IP65).
The product is E-marked (CE standard for electronic equipments installed aboard vehicles), and can thus be installed in full safety aboard of all on-road equipments.
|
|

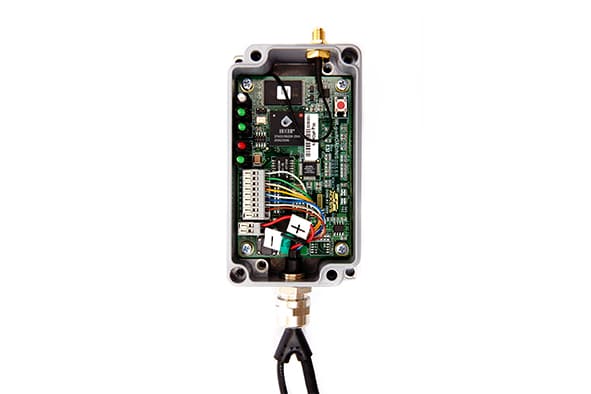

10/100 auto-sensing Ethernet port (terminal block inside the enclosure), plug & play mode & auto MDI/MDIX cross-over
|
||
|
WiFi network
|
Compliant to the IEEE 802.11a/b/g/h 2.4 / 5 GHz standards, multi-country Roaming support (IEEE 802.11d); Dynamic Frequency Selection (DFS) support provides flexible selection of best frequency to allow mobility among existing networks; “ClearVoice” band provides non-overlapping channels for fast data transmission; Transmission Power Control (TPC) offers flexibility to adjust RF output power, based on ATHEROS’s AR5414 (AR5006XS) chip set.
|
||
|
Data rate
|
Up to 108 Mbps (Super AG mode) |
||
|
Channels |
13 channels (b/g modes), 8 channels (a mode), 11 channels (h mode)
|
||
|
Output power
|
Transmitter +20 dBm (TPC)
|
||
|
Sensitivity
|
Receiver -92 dBm for IEEE 802.11 a/g and -95 dBm for IEEE 802.11b
|
||
|
Antenna
|
One 2dBi 2.4 / 5 GHz antenna, RP-SMA connector |
||
|
Modulation
|
OFDM: BPSK, QPSK, 16QAM, 64QAM and DSSS: DBPSK, DQPSK, CCK |
||
|
Security
|
64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (RADIUS authenticator & supplicant), MAC addresses filtering, SSID broadcast control
|
||
|
Modes |
Access point to build a WiFi network infrastructure, Bridge to connect any Ethernet equipments to this network and MODBUS/TCP wireless gateway, repeater (WDS), infrastructure, AD-HOC, bridge router & fast roaming (less than 50 ms) modes are supported
|
||
|
Administration
|
Thanks to its built-in WEB interface, the setup of the device is achieved using any web browser installed on your computer (Internet Explorer, Netscape, Mozilla …), SNMP agent, ACKSYS NDM
|
||
|
Operating systems
|
Windows, Linux, UNIX as well as any operating system supporting TCP/IP
|
||
|
Signaling
|
LEDs signaling for LAN, WLAN network activity, 10/100 mode, power supply
|
||
|
Power supply
|
DC power supply (+9VDC to +50VDC) or POE IEEE 802.3af (for the /NP model)
|
||
|
Consumption |
3.6W typical power consumption, 4W for the /NP model
|
||
|
Dimensions & weight |

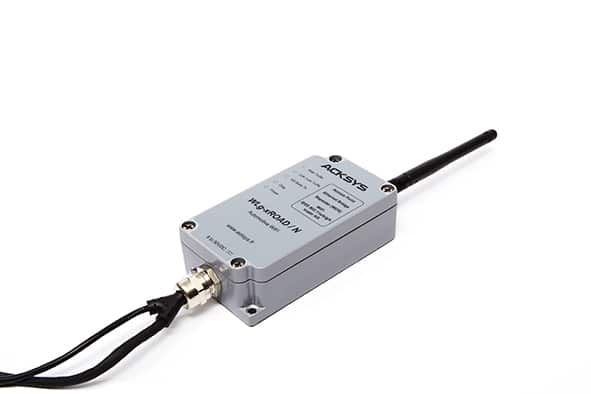

Shockproof rugged aluminum enclosure, (L: 115 x W: 64 x H: 35 mm), 370 g with the cable and without the antenna
|
||
|
Standards |
MIL-STD-810F method 514.5 & 516.5 (shocks & vibrations), IP65 seal rating EN 301489-17 & EN 61000-6-2 (CEM), E-marked (2004/104)
|
||
|
Environment |
Operating temperature: -25°C to +70°C (HR 0-99%), storage: -40°C to +80°C
|
NOTE : WLg-xROAD/N has reached the end of its life cycle (to know more about its different deadlines click here).
The recommended replacement product is : AirXroad. Your sales representative is at your disposal for any questions.
|
WLg-xROAD/N |

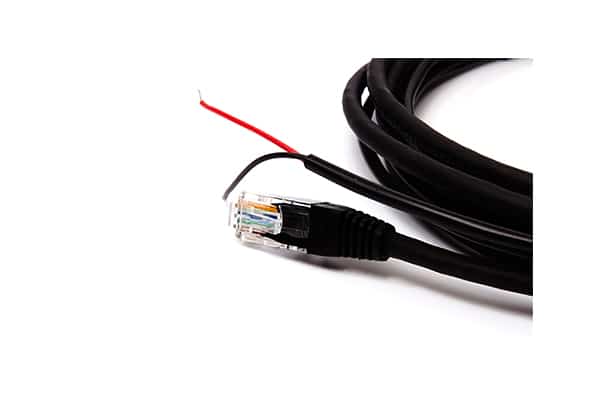

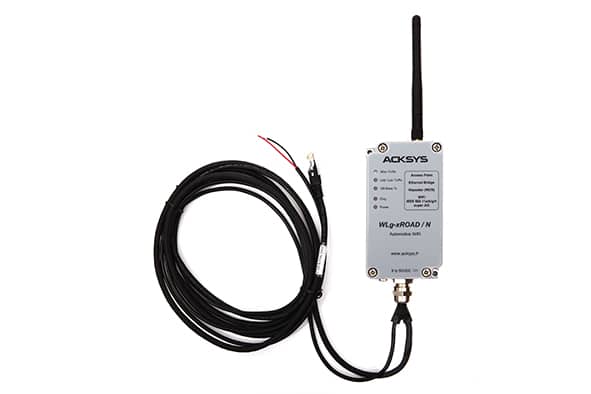

WiFi Access Point, Ethernet Bridge & WDS Repeater (a/b/g/h) for automotive applications, power input from +9VDC to +50VDC, shipped with 1 dual band 2 dBi omnidirectional (2.4 / 5 GHz) antenna and 2 meters of Ethernet RJ45 cable
|
||
|
WLg-xROAD/NP |
Same as above with the power over Ethernet option (IEEE 802.3af)
|
