Dual 11n WiFi access point, client, repeater & MESH point for railways
NOTE : WLn-RailBox has reached the end of its life cycle (to know more about its different deadlines click here).
The recommended replacement product is : RailBox. Your sales representative is at your disposal for any questions.

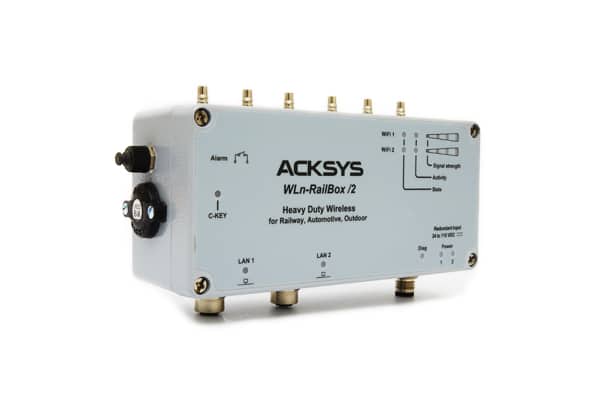

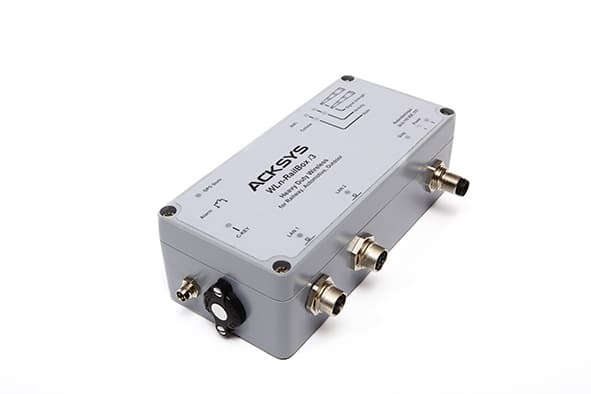

WLn-RailBox is a rugged device designed for railway and light rail applications. It can be mounted in trains, subways, trams for positive train control (PTC), fare collection, maintenance, remote management, wayside and track monitoring and in any equipment that requires robustness like forklifts, trailers, tractors, cranes, rotating machinery, for material handling, real-time information transmission and inventory management.
The device relies on the multi-streams MIMO technology that contributes to an expanded coverage, higher data throughput and increased radio link reliability.
WLn-RailBox supports 802.1x/RADIUS for a centralized management of all security policies. It incorporates a firewall, has advanced frame filtering functions and supports VLAN, WMM QoS functions to ensure network traffic segmentation and data prioritization (video, voice, entertainment…).
It fulfills the most severe requirements in terms of operating environment: from -20°C to +70°C, shock and vibration proof, protection against dust and water projections (IP66).
WLn-RailBox is certified for railway applications (EN 50155 [IEC 60571] / EN 50121-3-2 / EN 50121-4).
|
Ethernet link |
2-port Gigabit Ethernet 10/100/1000 auto-sensing, waterproof ultra-lock 8-point M12 X-coded connectors (CAT-6A) plug & play mode & auto MDI/MDIX cross-over |
||
|
WiFi network
|
1 or 2 radios compliant to the IEEE 802.11a/b/g/n, MIMO 3T3R, 2.4 / 5 GHz standards
|
||
|
Radio data rate
|
450 Mbps (3 streams) |
||
|
Operating frequencies |
ISM : 2.4-2.483 GHz (up to 14 channels)
|
||
|
Output power
|
Transmitter +20 dBm nominal |
||
|
Sensitivity
|
Receiver -92 dBm for IEEE 802.11 a/g/n and -95 dBm for IEEE 802.11b |
||
|
Antennas connections
|
3 or 6 QMA connectors for the WiFi (no antenna provided)
|
||
|
Modulation
|
OFDM: BPSK, QPSK, 16QAM, 64QAM / DSSS: DBPSK, DQPSK, CCK
|
||
|
Security
|
64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (centralized RADIUS authenticator & supplicant), MAC addresses filtering, SSID broadcast control
|
||
|
WiFi Modes |
Access point to build a WiFi network infrastructure, client to connect any Ethernet equipments to this network, repeater, MESH point (IEEE 802.11s), infrastructure, AD-HOC, client router, WMM QoS, multicast, VPN, dynamic routing and firewall modes are fully supported, fast roaming (less than 30 ms), redundancy (VRRP)
|
||
|
Administration
|
Built-in WEB interface, the setup of the device is achieved using any web browser, SNMP agent, ACKSYS NDM, C-Key (save / restore configuration key)
|
||
|
Operating systems
|
Windows, Linux, UNIX as well as any operating system supporting TCP/IP |
||
|
Signaling
|
LEDs signaling radio quality, activity and status, Link 10/100/1000 and activity for the LAN port
|
||
|
Power supply
|
+24VDC to +110VDC EN 50155 nominal, 1500V insulation, dual input (ultra-lock waterproof M12 connector 4-pole A-coded)
|
||
|
Consumption |
16W typical power consumption (dual radio)
|
||
|
Dimensions & weight |
Compact shockproof rugged aluminum enclosure, (L: 80 x l: 175 x h: 57 mm), 840g
|
||
|
Standards
|
EN 301489-17 & EN 61000-6-2 (CEM), IP66 seal rating,
|
||
|
Environment
|
Operating temperature: -25°C to +70°C (HR 0-99%) or extended -40°C to +75°C, storage: -40°C to +80°C
|
NOTE : WLn-RailBox has reached the end of its life cycle (to know more about its different deadlines click here).
The recommended replacement product is : RailBox. Your sales representative is at your disposal for any questions.
|
WLn-RailBox/R[P] |
Single or Dual WiFi Access Point, Ethernet Bridge, Repeater & MESH point (IEEE 802.11 a/b/g/n) for automotive applications, +24VDC to +110VDC nominal insulated, shipped with 2 meters of Ethernet RJ45 cable, 2 meters power cable and a fixing plate (already mounted)
|
||
|
/R (radio) coding:
[P]: Same as above with POE+ IEEE 802.3at Power Supply, no power cable is shipped with this model
|
