11n WiFi access point, Ethernet bridge, repeater & Mesh point
NOTE : WLn-xROAD has reached the end of its life cycle (to know more about its different deadlines click here).
The recommended replacement product is : AirXroad. Your sales representative is at your disposal for any questions.

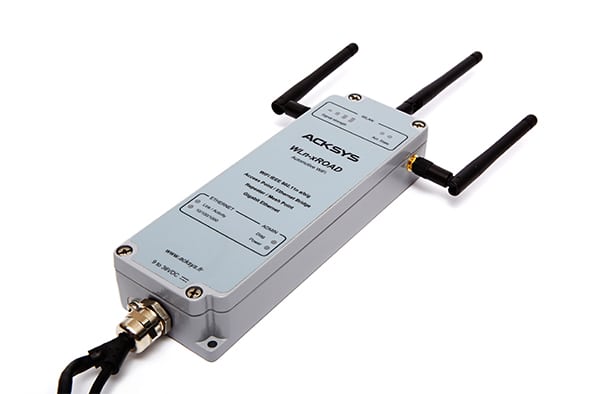

WLn-xROAD is a rugged equipment designed for applications in road transportation, depots, warehouses, agriculture, manufacturing floors, docks, distribution centers, shipyards and lumberyards … it can be mounted in trucks, city buses, forklifts, trailers, tractors or cranes or in any rotating machinery, for material handling, real-time information transmission, and inventory management.
The device relies on the multi-streams MIMO technology that contributes to an expanded coverage, higher data throughput and increased radio link reliability.
It fulfills the most severe requirements in terms of operating environment: from -25°C to +70°C, shock and vibration proof, protection against dust and water projections (IP66).
WLn-xROAD is E-marked (CE standard for electronic equipments installed aboard vehicle), and can thus be installed in full safety aboard of all on-road equipments.
|
Ethernet link |
Gigabit 10/100/1000 auto-sensing Ethernet port (terminal block inside the enclosure), plug & play mode & auto MDI/MDIX cross-over |
||
|
WiFi network |
Compliant to the IEEE 802.11a/b/g/n MIMO 3T3R, 2.4 / 5 / 5.4 GHz standards
|
||
|
Radio data rate
|
450 Mbps |
||
|
Radio channels |
2.4 GHz (802.11b/g/n): 14 channels / 5 GHz (801.11a/h/n): 24 channels
|
||
|
Output power
|
Transmitter +20 dBm (TPC)
|
||
|
Sensitivity
|
Receiver -92 dBm for IEEE 802.11 a/g/n and -95 dBm for IEEE 802.11b
|
||
|
Antennas connections
|
Up to three 2.4 / 5 GHz MIMO antenna, RP-SMA type connectors
|
||
|
Modulation
|
OFDM: BPSK, QPSK, 16QAM, 64QAM / DSSS: DBPSK, DQPSK, CCK
|
||
|
Security |
64/128 bits WEP, WPA-PSK, WPA2-PSK, IEEE 802.1x (centralized RADIUS authenticator & supplicant), MAC addresses filtering, SSID broadcast control
|
||
|
Modes
|
Access point to build a WiFi network infrastructure, Bridge to connect any Ethernet equipments to this network, MODBUS/TCP wireless gateway, repeater, MESH point (IEEE 802.11s), infrastructure, AD-HOC, bridge router, fast roaming (less than 30 ms single channel), redundancy (VRRP), WMM QoS, multicast and IGMP-Snooping modes are fully supported.
|
||
|
Administration |
Built-in WEB interface, the setup of the device is achieved using any web browser, SNMP agent, ACKSYS NDM
|
||
|
Operating systems |
Windows, Linux, UNIX as well as any operating system supporting TCP/IP
|
||
|
Signaling
|
LEDs signaling for radio quality, activity and status, Link 10/100/1000 and activity for the LAN port
|
||
|
Power supply
|
DC power supply (+9VDC to +36VDC), terminal block inside the enclosure
|
||
|
Consumption |
10W typical power consumption
|
||
|
Dimensions & weight |
Shockproof rugged aluminum enclosure, (L: 185 x W: 64 x H: 35 mm), 450 g with the cable and without the antennas
|
||
|
Standards
|
MIL-STD-810F method 514.5 & 516.5 (shocks & vibrations), IP66 seal rating EN 301489-17 & EN 61000-6-2 (CEM), E-marked (2004/104)
|
||
|
Environment |
Operating temperature: -25°C to +70°C (HR 0-99%), storage: -40°C to +85°C
|
NOTE : WLn-xROAD has reached the end of its life cycle (to know more about its different deadlines click here).
The recommended replacement product is : AirXroad. Your sales representative is at your disposal for any questions.
|
WLn-xROAD |
WiFi Access Point, Ethernet Bridge, Repeater & MESH point (IEEE 802.11n a/b/g) for automotive applications, power input from +9VDC to +36VDC, shipped with 3 dual band 2 dBi omnidirectional (2.4 / 5 GHz) antenna and 2 meters of Ethernet RJ45 cable & power cable
|
