4 & 8 ports serial boards
NOTE : xRSUNI range has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.

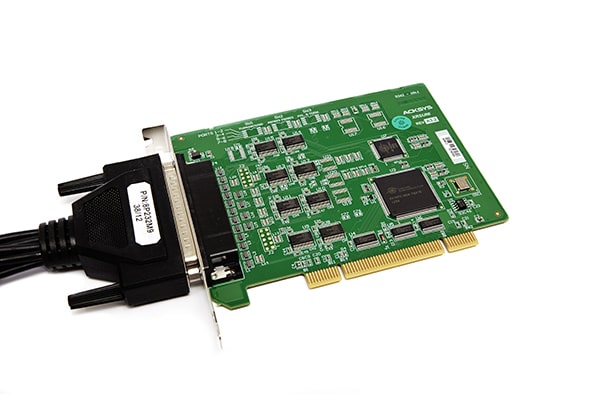

The new range of universal PCI serial multi-port boards from ACKSYS combines high performance, ease of use, robustness at very competitive prices. This multipurpose range includes 2, 4 and 8 channel boards for RS232, RS422 or RS485.
PERFORMANCE…
Featuring state-of-the-art communication controllers (UARTS), the xRSUNI range reduces host CPU loading time by up to 75% compared to existing PCI boards.
This level of performance is made possible by the full-scale PCI interface integrated in the UARTS, unlike traditional architectures.
The 128 byte per channel FIFO buffer memory implies that the boards can manage multiple communication lines at much higher rates than traditional boards, and ensures the reliability of received data.
A high resolution baud rate generator can handle custom transmission rates in addition to the standard rates (up to 1.8 Mbps).
UNIVERSALITY…
The xRSUNI range offers ease of use in all PCI based computers (PCI & PCI-X) regardless of the bus power supply (+3.3VDC / +5VDC).
SECURITY…
In RS485 mode, line turn-around is usually software-controlled, a fact which often leads conflicts.
The xRSUNI board performs automatic line turn-around to guarantee optimal performance in RS485 mode, independently of the baud rate or operating system.
RELIABILITY…
Highly integrated, MTBF > 106 POH, ESD protection 15 KV : 3 key advantages that guarantee reliability and robustness.
|
Number of channels |
2, 4 or 8 (build around the 16C950 communication controller)
|
||
|
Baud rate |
Up to 1.8 Mbps (only for non-isolated RS422/RS485, 1 Mbps in other cases), standard & custom transmission rates (non-multiple of standard rates)
|
||
|
Format |
Asynchronous. 5, 6, 7 or 8 bits per character. 1, 11/2, 2 stop bits. Parity : Even, Odd, Mark, Space or none.
|
||
|
Buffer size |
128 byte FIFO buffer on each transmit/receive channel, programmable FIFO threshold.
|
||
|
Flow control |
Hardware (RTS/CTS) and/or (XON/XOFF), RS485 self line turn-around.
|
||
|
Line interface |
RS232 or RS422/RS485 (with or without isolation). On-board management of automatic line turn-around in RS485 mode.
|
||
|
Connectors |
Depending on reference
|
||
|
Protection |
Electrostatic discharges (ESD 15 KV), HF filtering, 2500V optical isolation for isolated model.
|
||
|
Dimensions |
LP model : (H) 64.41 mm x (L) 119.91 mm, SP : (H) 106.68 mm x (L) 140.44 mm LP boards are also delivered with a SP PCI bracket
|
||
|
Power consumption |
2 Watts maximum (8-port model).
|
||
|
Operating conditions |
-5°C to +65°C (our manufacturing process includes cyclical tests between -20°C and +80°C).
|
||
|
Environment & safety |
89/336/CEE, NF-EN55022 (class B), NF-EN55024, NF-EN50082-2, EN61000-4-2 to -4-8, ENV50204, NF-EN60950, EN50102, IEC61131-2, IEC695-2-1, IEC68-2-1, IEC68-2-2,IEC68-2-6, IEC68-2-14, IEC68-2-27, IEC68-2-32.
|
||
|
Peripheral drivers |
Windows and Linux peripheral drivers, controlled like standard COM ports.
|
||
|
Applications |
Industrial computing, industrial automation, access control, ticketing, banking systems (ATM), point of sales.
|
||
|
|
NOTE : xRSUNI range has reached the end of its life cycle (to know more about its different deadlines click here).
Your sales representative is at your disposal for any questions.
|
Standard profile PCI computers |
|||
|
2RSUNI-232-9 |

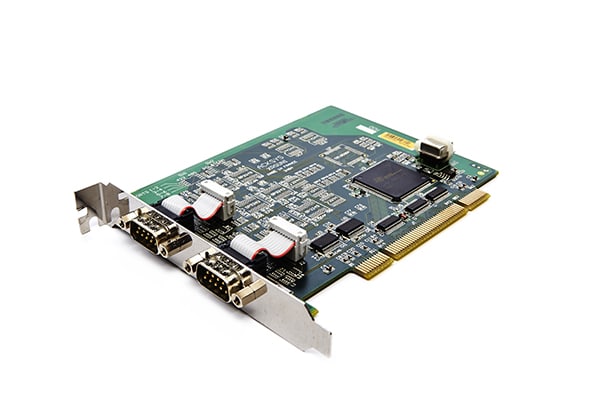

2-port RS232, SUB D9 male connectors, universal bus
|
||
|
4RSUNI-232-9 |

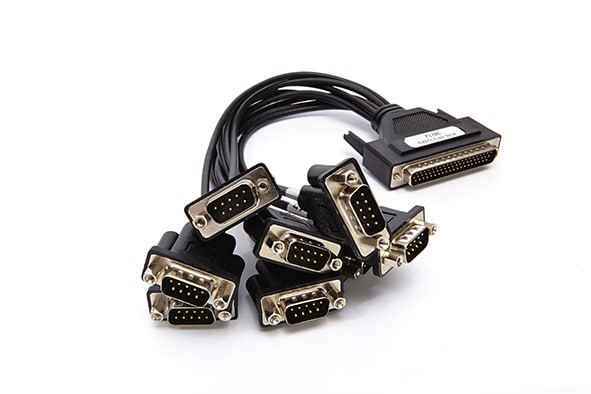

4-port RS232, octopus cable with SUB D9 male connectors, universal bus
|
||
|
8RSUNI-232-9 |
8-port RS232, octopus cable with SUB D9 males connectors, universal bus
|
||
|
2RSUNI-400-9 |
2-port RS422/485, SUB D9 female connectors, universal bus
|
||
|
4RSUNI-400-25 |
4-port RS422/485, octopus cable with SUB D25 male connectors, universal bus
|
||
|
4RSUNI-400-I
|
4-port isolated RS422/485, external box with 5-point screw-in terminal, universal bus |
||
|
8RSUNI-400-25 |
8-port RS422/485, octopus cable with SUB D25 male connectors, universal bus
|
||
|
Low profile PCI computers |
|||
|
4RSUNI-232-9-LP |
4-port RS232, octopus cable with SUB D9 male connectors, universal bus, low profile MD1 format
|
||
|
4RSUNI-400-I-LP
|
4-port isolated RS422/485, external box with 5-point screw-in terminal, universal bus, low profile MD1 format | ||
|
8RSUNI-232-9-LP
|
8-port RS232, octopus cable with SUB D9 male connectors, universal bus, low profile MD1 format | ||
